24 Core Single Mode Fanout Fiber Optic Patch Cord LC UPC Pre
Terminated Cable

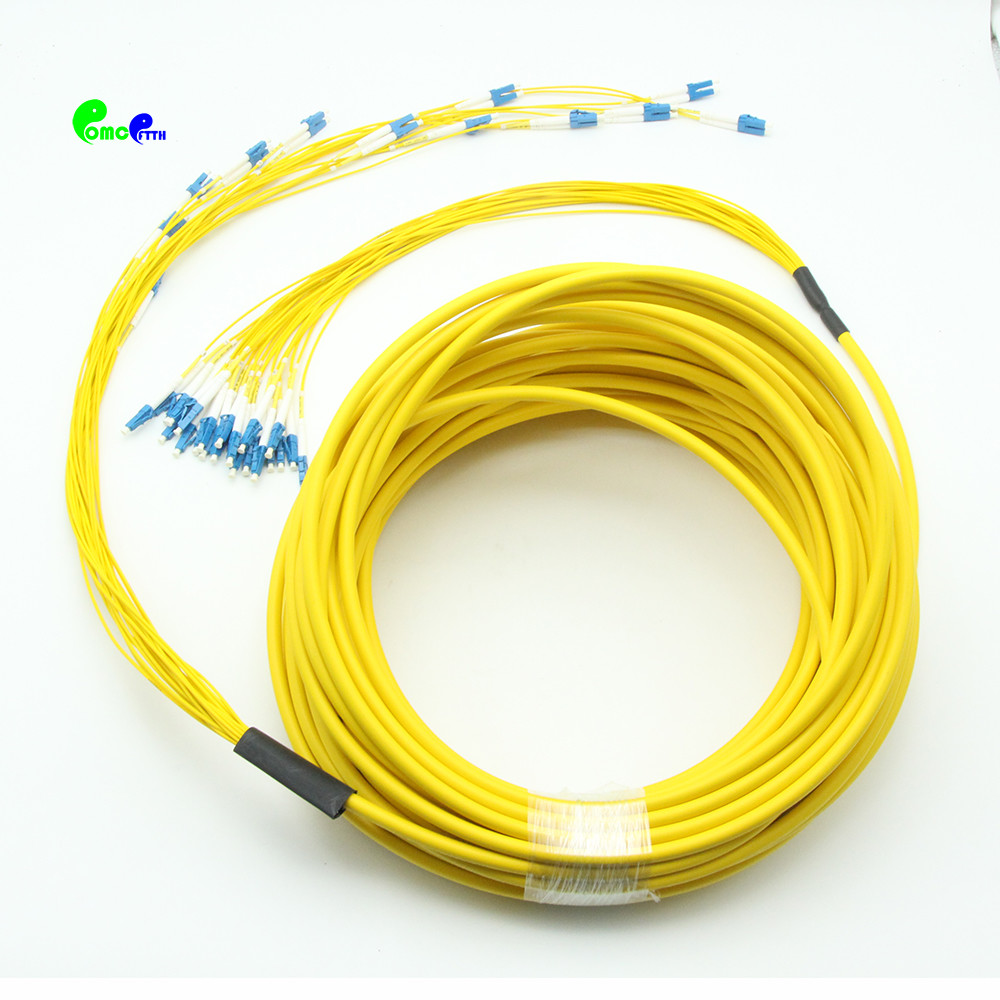

24 Core Single Mode Fanout Fiber Optic Patch Cord LC UPC 9/125um
Pre-terminated Cable Breakout 2.0mm fibre optic patch cord
Breakout Patch cables are installation cables that are suitable for
laying in buildings, primarily in cable conduits and cable trays.
They are designed for direct connector assembly with no need for
splice connectors.
OMC’s Patch cables are manufactured and tested in compliance with
TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2,
OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit
Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every
termination through rigorous parameter test to ensure the hightest
in network performance.
Optical Specification of 24 core fanout fiber patch cord
| Connector | LC | Jacket OD(mm) | 24cores:15.5mm |
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow |
| Polish | UPC | Wavelength | SM:1310/1550nm |
| Cable Type | Multi-fibers Breakout 2.0mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss | SM UPC ≥ 50dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm |
| Apex Offset | ≤50 um |
| Fiber Spherical Height | +/- 100 nm |
| Angular Offset | ------ | 8°± 0.5° |
End-face Quality (SM) of 24 core fanout fiber patch cord
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Length Tolerance of 24 core fanout fiber patch cord
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application of 24 core fanout fiber patch cord

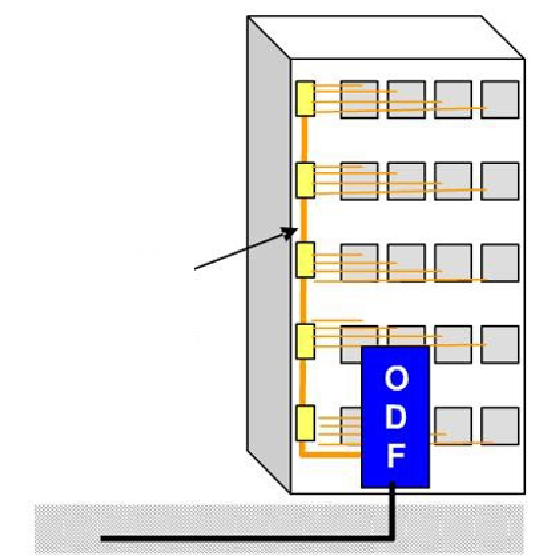

The ideal cable for vertical wiring in the building, Especially
suitable for the application of dispersion spectrometer in shaft
