LC Fiber Optic Cable Pigtail With 0.9mm 12 Colors Mini Breakout
Cable
Fiber Optic LC UPC pigtail,LC APC Pigtail with 0.9mm 12 colors,
2.0mm , 3.0mm , 4 - 144F Mini breakout cable , 4 - 12F ribbon
fanout cable with OEM Service

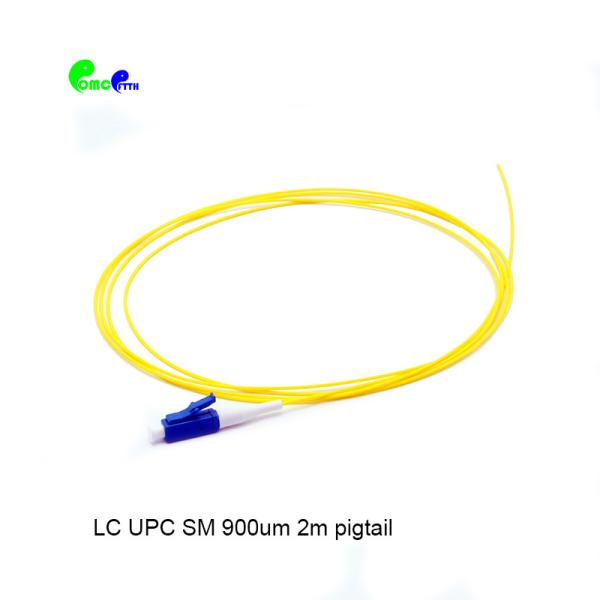

The fiber optic pigtail is normally a tight/Tight buffered fiber cable with a connector
pre terminated on one end and exposed fiber on the other. The end
is stripped and fusion spliced to a single or multi-fiber trunk.
When utilized properly, the fiber optic pigtail allows light signal
transmission with minimal return loss and low attenuation. Make
sure your network is reinforced with OMC’s fiber pigtails, as ours
are manufactured of superior quality materials.
The Pigtail are available in both single and multimode versions
with either APC or UPC polish types. Our fiber pigtails come with a
partial outer jacket protecting the Tight/Loose buffers from
damage. If installed in a high density application,the outer jacket
can be easily removed to accommodate a tighter bend radius for the
pigtails.
We offer Individual single pigtails, Discounted 6 packs, or 12
Packs pigtails set; 4-144F Mini breakout cable;4 - 12F ribbon fanout cable with OEM
Service
Products Materials
 | G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
900um, 1.2mm,1.6mm,1.7mm,1.8mm,2.0mm,2.4mm,2.6mm,2.8mm OD cable
PVC (Riser/OFNR),LSZH,Plenum (OFNP) Jacket materials |
| Standard 900um Cable | Color-coded 900um Cable |
 |  |
 | High quality SM Ceramic ferrule, Good concentricity<0.5um High
quality MM Ceramic ferrule, Good concentricity<4.0um |
 | Standard connectors LC Good Repeatability and Interchangeability |
Available for 12 colors,The 900um buffer and fiber same color coded
Optical Specifications
Standard 900um Fiber Pigtail
| Insertion loss | ≤0.25dB Mean (Standard) | Interchangeability | ≤0.2dB |
Return loss | SM UPC≥50dB SM APC≥60dB MM PC≥35dB | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Maximum pulling force | 6N(900um cable) 70N(2.0mm cable) 100N(3.0mm cable) |
Standard 6-12F Color-Coded 900um Fiber pigtails set
Insertion loss | ≤0.3dB Mean (Max) | Interchangeability | ≤0.2dB |
Return loss | SM UPC≥50dB(min) SM APC≥60dB(min) MM PC≥35dB(min) | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Maximum pulling force | 6N(900um cable) 70N(2.0mm cable) 100N(3.0mm cable) |
4-144F Pre-terminated 900um cable fiber pigtail
| Insertion loss | ≤0.25dB Mean (Standard) | Cable OD | 4cores:5.0mm 6cores:5.3mm 8cores:5.6mm 12cores:6.3mm 24cores:8.3mm 48cores:10.5mm |
Return loss | SM UPC≥50dB SM APC≥60dB MM PC≥35dB | Vibration | ≤0.2dB |
| Polarity | A(Tx) to B(Rx) | Maximum pulling force | 660N(<12 cores) 1320N(>12 cores) |
4-12F Ribbon fanout 900um pigtail
Connector | LC | Jacket OD(mm) | 4cores:3.5x2.5mm 6cores: 3.8x2.5mm 8cores: 4.5x2.5mm 12cores: 5.0x2.5mm |
Fiber Mode | 9/125μm, 50/125μm,62.5/125μm, | Jacket Color | SM:Yellow/Blue/White; OM1&OM2: Orange; OM3:Aqua; OM4:Aqua/Violet/ Magenta |
Polish | PC,UPC,APC | Wavelength | SM:1310/1550nm MM:850nm |
Cable Type | Multi-fibers Breakout 0.9mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
Return loss | SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating tem- perature | -40~75°C | Storage temperature | -45~85°C |
3-144F Pre-terminated Micro-Fiber fanout Pigtail&patch cord
-Standard quality
| Insertion loss | ≤0.3dB Mean (Standard) | Main cable OD | 3.0mm |
Return loss | SM UPC≥50dB SM APC≥60dB MM PC≥35dB | Fanout cable OD | 0.9mm-2.0mm |
| Polarity | A(Tx) to B(Rx) | Maximum pulling force | 100N |
-IEC Grade B quality
Insertion loss | ≤0.12dB mean, ≤0.25dB max. for >97% of sample | Interchangeability | 3.0mm |
Return loss | SM UPC≥50dB SM APC≥60dB MM PC≥35dB | Fanout cable OD | 0.9-2.0mm |
| Polarity | A(Tx) to B(Rx) 12F | Maximum pulling force | 100N |
Geometric Specification( only available after customer requested)
| Items | Parameter |
| Polishing | PC | APC |
| ROC | SC/FC/ST | 10 ~ 25 | 5 ~ 12 |
| LC/MU | 7~ 25 | 5 ~ 12 |
| Apex Offset | ≤ 50 |
| Fiber Spherical Height | ±100 |
| Angle | ± 0.5 | 8 ± 0.5 |
Standard Compliance
- TIA 604 (FOCIS)
- TIA/EIA 492AAAE
- IEC 61754
- IEC 60793-2-10
- IEC61300-3-35
- YD/T1272.1-2003
- RoHS, ISO9001 Compliant
Features
- High quality zirconia ferrules.
- Good repeatability and interchange.
- Flame-retardant, rugged and dura- ble jacket.
- 100% optically tested for insertion loss to ensure high quality
Packaging
This easily taken and well-protected fiber optical cable package
has been labelled and marked by OMC as de- fault .Standard carton
size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be
used depends on goods Qty . Packing can be customized.
Fiber Optic Pigtail - method one :
Fiber Optic Pigtail - method two :
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
