16F Wall Mounted Fiber Distribution Box With PLC Splitter IP65
Fiber Closure
FTTH Box 16F Wall Mounted /Pole mounted Fiber Optic Distribution
Box with PLC Plug-in Splitter IP65 Fiber Closure
This Lockable IP65 distribution box is supplied loaded or unloaded
and offers the ability to terminate 16fibers housed in a strong
robust ABS(ABS+PC)enclosure for indoor and outdoor applications.
This terminal box terminates up to 16 fiber optic cables, offers
spaces for splitters and up to 24 fusions, allocates 16 x SC
Simplex adapters or 16 xLC Duplex adapters and working under both
indoor and outdoor environments. It allows also fiber splitting,
splicing and distribution. Provides solid protection and management
for the FTTH network building.
Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Features
IP 65 Rating for external use
Lockable door for added security
Integrated cable tie points for securing incoming cable
Up to 24 splices & 16xSC Simplex connection points or 1x4/1x8/1x16
PLC splitter

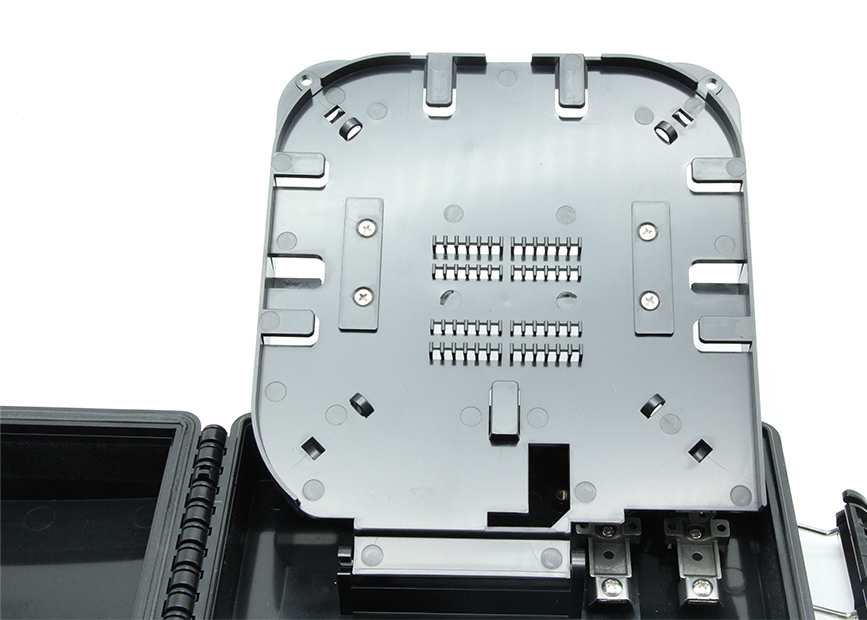

Removable splice tray for easy installation
Accepts loose tube, distribution and pre-terminated cables
Integrated bend radius protection
Removable door for ease of installation
Supplied with 16 heat shrink splice protectors
Supplied with transit tubing
Supplied with wall fixings and tie wraps
ROHS, REACH compliant
Specification
| Model | FDB-16C-2 |
| PLC Modular | 2x(1x8 PLC splitter) or 1x (1x16 PLC Splitter) modular |
| Cable Ports | 2 |
| Applicable cable OD | 5-15mm |
| Box Dimensions(mm) | 303mm*236mm*109mm |
| Material | ABS/ABS+PC |
| Max capacity(F) | 24F Splices&Connection |
| Installation method | Rack mount and pole mount |
Operation conditions
Temperatures: -40℃ -- 60℃
Humidity: 93% at 40℃
Air Pressure: 62kPa – 101kPa
Standard Accessories
Labeling paper, abrasive paper, self-adhesive positioning block,
heat-shrink protective sleeves, nylon tie,insulation tape, fixing
screws.
