32 Way G657A1 Fiber Optic Splitter 1x32 PLC Splitter Terminal Box
1*32 PLC Splitter PLC Splitter Terminal Box Hot Selling Fiber Optic
Equipment 32 Way Fiber Optic PLC Splitter
Planar lightwave circuit (PLC) splitter is an optical power
distribution device based on the integrated waveguide of
quartz plate. With the features of small size, wide range of
operating wavelength, stable reliability and good uniformity,
It’s widely used in PON,ODN,FTTX point to connect between
termination device and central office to achieve the signal
splitter.
OMC ‘s Bare fiber PLC Splitter family has 1x2, 1x4, 1x8, 1x16,
1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter,
with specifications that are tailored for different applications
and markets. Wide bandwidth, compact size. All products
meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification of PLC Splitter
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 | 17.4/17.7 | 20.6/21.3 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 | 17.1/17.4 | 20.3/21.0 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Environmental Conditions:
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
Cable Infor
| Fiber type | G657A1 |
| Pigtail cable | 900um |
| Connector | SC, LC,FC,ST,……. |
| 2xN Splitter | Only Single Chip |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
Application
The bare PLC splitter can allow a single GPON network interface to
be shared among many subscribers and allow service providers to

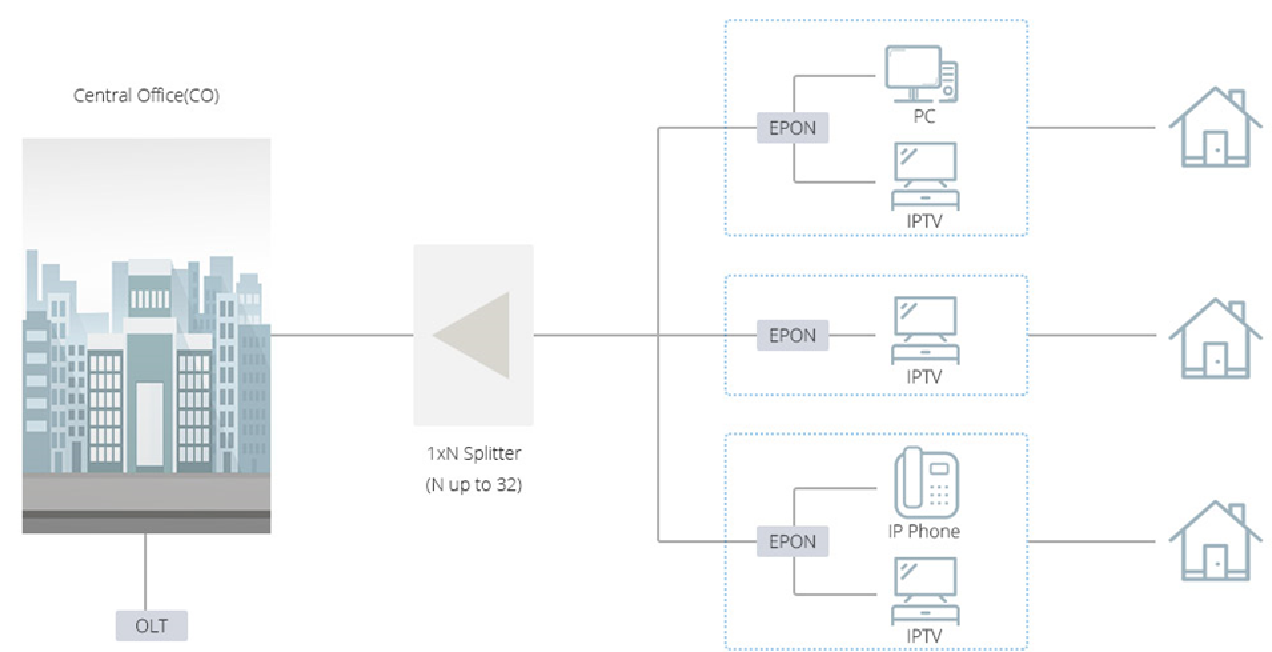

enable bandwidth-intensive applications. The following figure shows
1X8 bare PLC fiber splitter interconnected with GPON OLT and ONT
through fiber optic splice closure

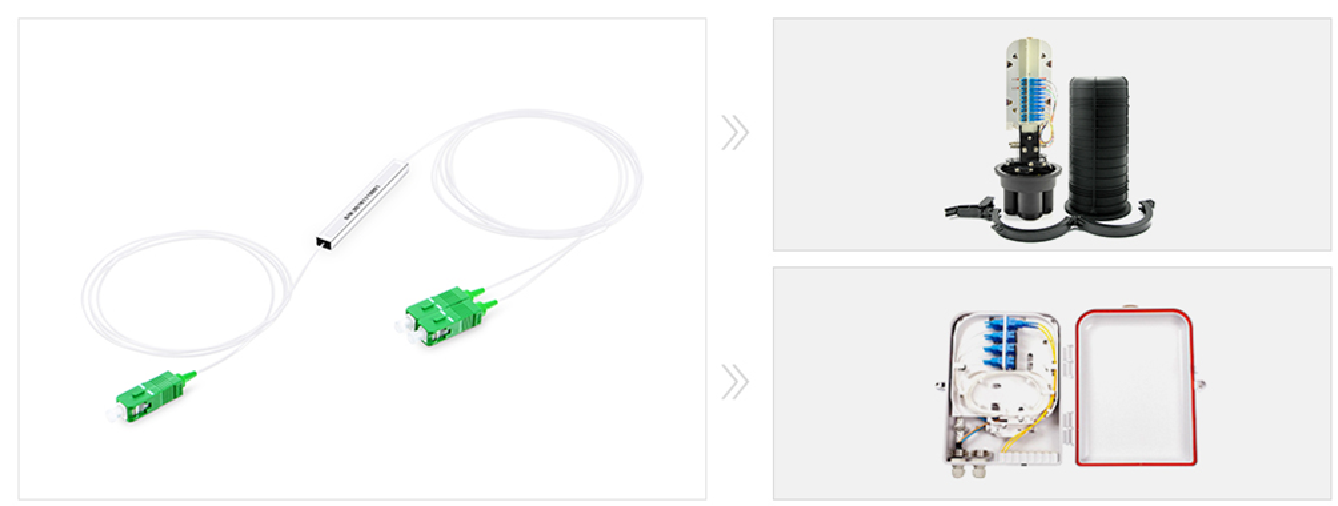

Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses
