High Quality 1x 8 Fiber PLC Splitter With SC / LC / FC connector
and G657A1 Fiber fanout 0.9mm 2.0mm With OEM service
Planar lightwave circuit (PLC) splitter is an optical power
distribution device based on the integrated waveguide of quartz
plate. With the features of small size, wide range of operating
wavelength, stable reliability and good uniformity, It’s widely
used in PON,ODN,FTTX point to connect between termination device
and central office to achieve the signal splitter.
OMC ‘s PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,
2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications
that are tailored for different applications and markets. Wide
bandwidth, compact size. All products meets, ROHS,
GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 | 17.4/17.7 | 20.6/21.3 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 | 17.1/17.4 | 20.3/21.0 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Environmental Conditions:
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
Cable Infor
| Fiber type | G657A1 |
| Pigtail cable | 250um; 900um; 1.6mm;1.8mm;2.0mm |
| Connector | SC, LC,FC,ST,……. |
| 2xN Splitter | Only Single Chip |
Products group:

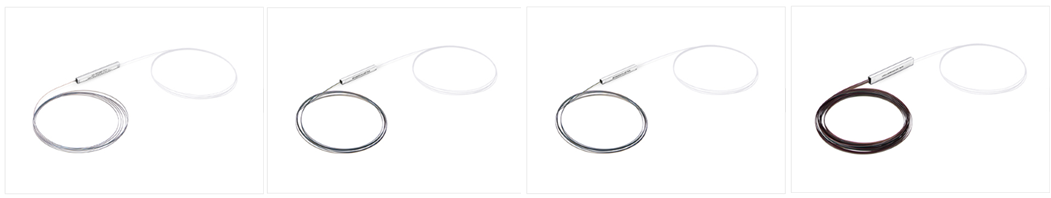

Bare fiber type PLC splitter
Blockless type PLC splitter
ABS Cassette type PLC splitter
Mini Plug-in module type PLC Splitter
Application

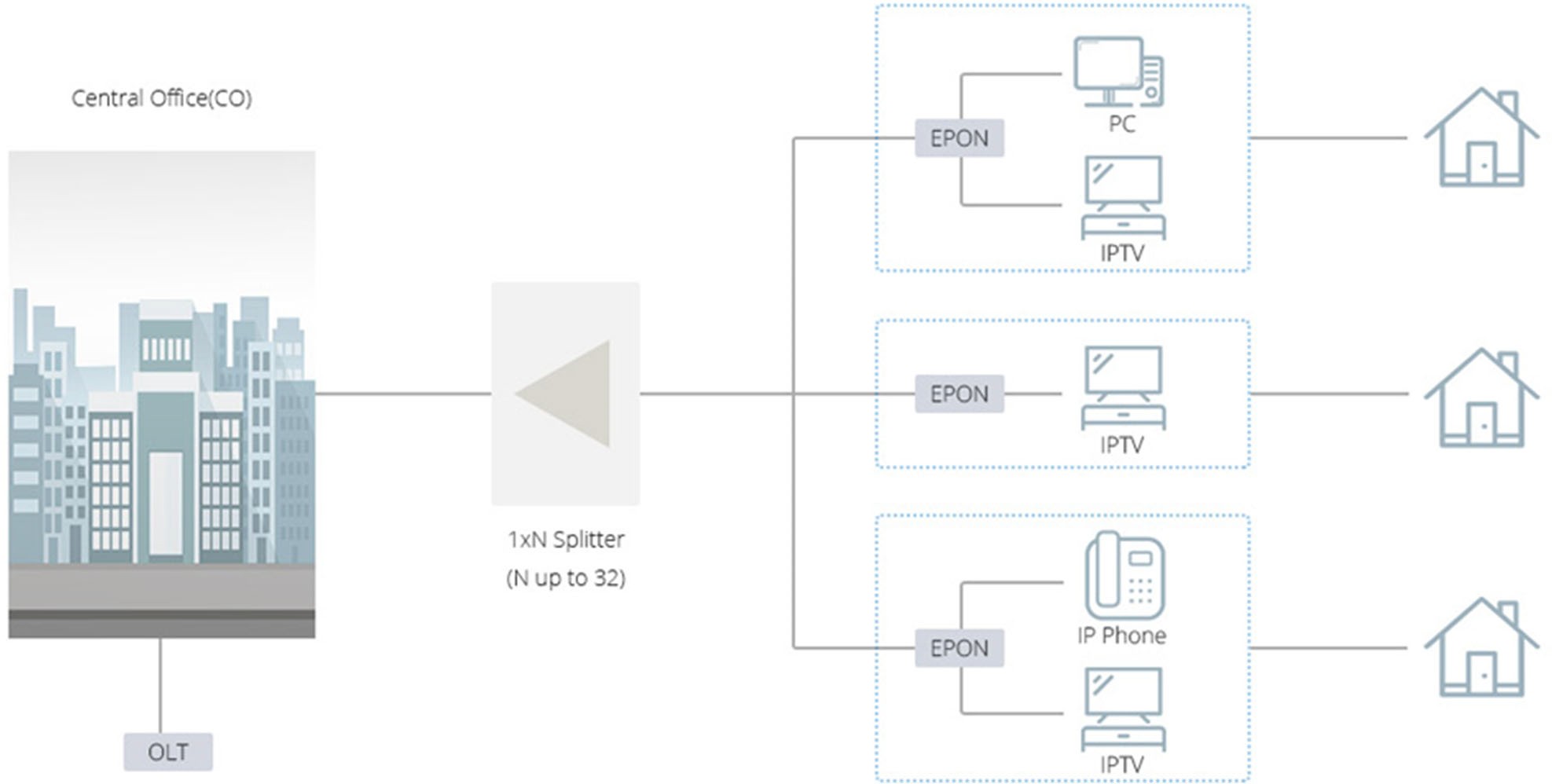

The bare PLC splitter can allow a single GPON network interface to
be shared among many subscrib- ers and allow service providers to
enable bandwidth-intensive appli- cations. The following figure
shows 1X8 bare PLC fiber splitter inter- connected with GPON OLT
and ONT through fiber optic splice closure.
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical sig- nals, which gives carriers
the ability to split optical signals to multiple homes or
businesses.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses.
