2 / 4 / 8 Fibers CS UPC Singlemode Fiber Optic Adapter Without
Flange For Data Center
Network uplinks need to move to higher speeds to match servers. The
IEEE has released a new standard (IEEE 802.3.bs- 2017), but
currently there are parallel and WDM transceiver structures for
200/400G QSFP-DD/OSFP, each needing 8 optical lanes. Due to the
QSFP interface, 2X duplex LC connectors cannot fit in the
QSFP-DD/OSFP form factor. There- fore, network customers have
requested a new LC design to fit the QSFP-DD/OSFP interface. In
response, Senko has developed solutions incorporating CS
Connectors/Adapter for use with QSFP-DD and OSFP transceivers to
increase port density in 100/200/400G applications.

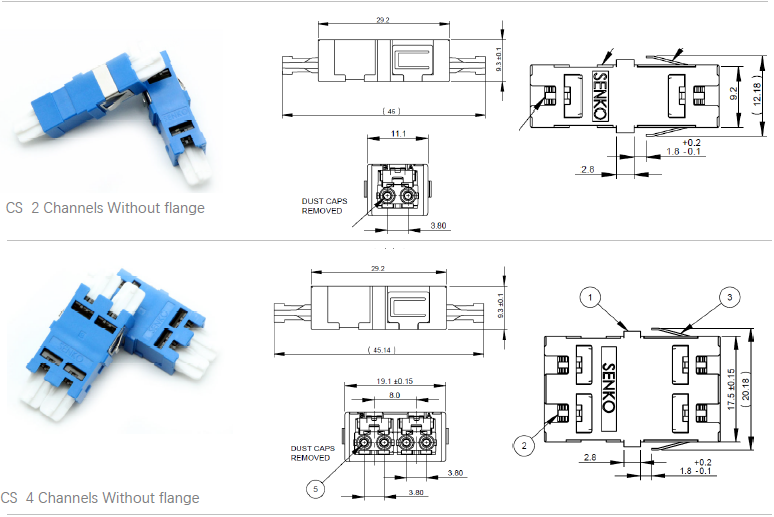

OMC offer Senko’s new CS Adapter is specifically designed for CS Connector. CS Adapters offer
reduced ferrule pitch and higher density than LC connectors, and
they support next-generation 200/400G QSFP-DD and OSFP
transceivers.
Optical Performance
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.1dB Max. |
| Withdrawal force (g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) |
| Storage Temp(℃) | -40～+85 |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
Products Highlights
Products Group
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
