MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe
LSZH Fiber Patch Cable Jumper

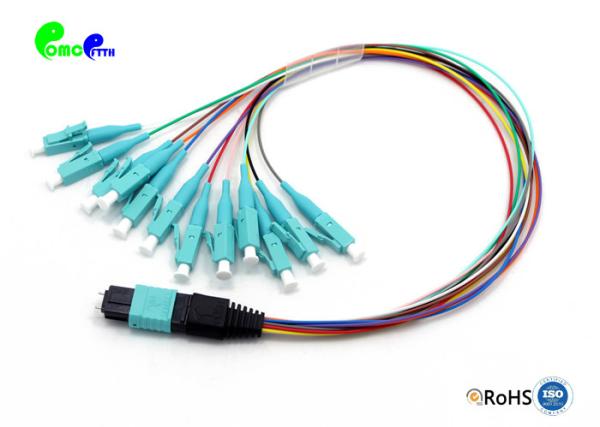

12cores MPO Male - LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end.
This Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4
and high-density data center. It is optimized for 10/40/100G
high-density data center applications. This 12 Fiber harness cable
is used for connecting (6) SFP+ into a MPO adapter panel and MPO
trunk.
Connector’s Standard:
LC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
MPO/MTP: Meets IEC Standard IEC-61754-7; IEC61755, Telcordia
GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Packaging & Delivery:
Packaging Details
1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized
Port: Shenzhen
Optical Specifications:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
Insertion loss (MPO) (IEC 61300-3-34) | Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) | Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
Features:
· 100% pre-terminated and tested in factory to ensure transfer
performance.
· Low insertion loss, high return loss
· MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector
terminations and assemblies
· Economical solution for mass-termination of fiber
· Designed for low loss and standard loss SM and MM applications
· Ruggedized round cable, oval cable and bare ribbon options
available
· Color coded housings available to differentiate fiber type,
polish type and/or connector grade
· Good in repeatability and exchangeability
Description:
Premium Performance Fiber Optic Cable
Fiber optic cables are used for connections to data center, CATV,
fiber test equipment, LAN, telecommunication networks, FTTx,
communication rooms, fiber optic communication system, defense
combat readiness, etc.
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum |
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | |
| ROC-Y(ABS) | 50mm | |
| Angle | Angle-X | -0.2° | -0.2° |
| Angle-Y | APC | 7.85° | 8.15° |
| PC | -0.2° | -0.2° |
| Fiber height (nm) | 1000nm | 3500nm |
| Max.DH.All Fiber: | -300nm | 300nm |
| DH.Adj: | -300nm | 300nm |
LC/SC/FC/ST End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Cable Drawing
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
