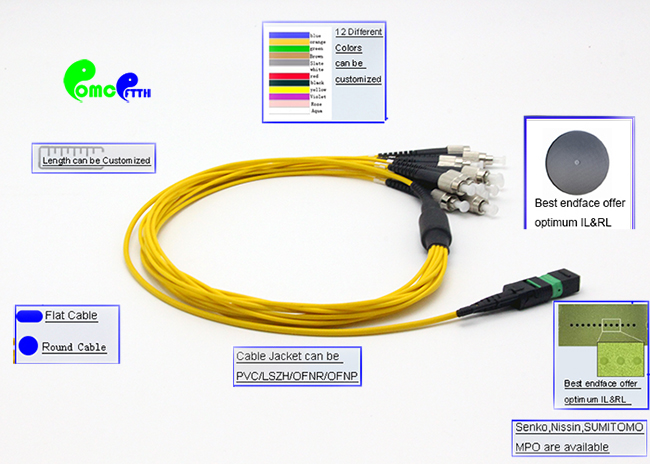

MTP Trunk Cable Single Mode Breakout 2.0mm Cable MTP Female To FC UPC 12 Fibers LSZH OS2 9 / 125μm

MTP harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Known as MTP breakout cable or MTP fan-out cable as well, it has a single MPO connector on one end that breaks out into 4-12 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber cable configurations with lengths from 0.5-100 meters and other customized lengths. MTP harness cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are

the advantages of MTP harness cable:

• Space saving—The active equipment and backbone cable are good for saving space.
• Easy deployment—Factory terminated system saves installation and network reconfiguration time.
• Reliability—High standard components are used in the manufacturing process to guarantee the product quality.

MTP-LC/SC/FC/ST Fiber Patch Cord are terminated with MTP and LC/SC/FC/ST connector on both end. All of OMC’s MPO Connectors are from USCONEC.

MTP products’ Standard:

• Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
• Structured cabling per TIA-568-C
• Parallel Optics
  • Optical Internetworking Forum (OIF) Compliant
  • InfiniBand Compliant
• InfiniBand

- 10G Fiber Channel Compliant

- 40G and 100G IEEE 802.3

- QSFP

Other connectors’ Industrial Standard:

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

MTP-FC patch cord’s Specification:

MTP Female to FC UPC 12 Fibers LSZH 9/125 Single Mode Trunk Cable

High Quality MTP Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Related products:

1x32 PLC Module Splitter

Fibre Terminal Box

Patch Panel

Application:

1. CATV

2. Active dvice termination

3. Telecommunication networks

4. Metro

5. Local Area Networks(LANs)

6. Data Processing networks

7. Test Equipment

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free Pallet

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

---

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
