    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket

    Ask Lasest Price
    Brand Name : USconec
    Model Number : OM4 MTP Male 24F SX 50 / 125μm
    Payment Terms : L/C, T/T, MoneyGram, Western Union
    Certification : ROHS and ISO
    Price : Negotiable
    Supply Ability : 100000 pcs per month
    Delivery Time : 3 days after payment comfirmed
    • Product Details
    • Company Profile

    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket

    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket


    24F MTP(Male)- MTP(Male) 3.0mm LSZH Patch cable/trunk cable. MTP Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.


    The merits of MTP/MPO Patch cable/trunk cable generally include:


    High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

    Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

    Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.


    All of OMC’s MTP Connectors are from USconec. MTP Patch cable/trunk cable is a kind of high-density cable assemblies which is generally use in three areas.

    1, The Data Center application with high dense degree environment

    2, The optical fiber to the building

    3, The internal connector application in fiber equipment.


    MTP Patch cable/trunk cable ’s Specification:


    Spec items.Single mode (APC 8-degree polished)Multimode (PC Flat polish)

    Insertion loss (MTP)

    (IEC 61300-3-34)

    Standard MTP:≤0.75dB(max), ≤0.35dB(Typical)

    Elite MTP:≤0.35dB(max), ≤0.20dB(Typical)

    Standard MTP:≤0.6dB(max), ≤0.35(Typical)

    Elite MTP:≤0.35dB(max) , ≤0.20dB(Typical)

    Return loss(MTP)≥60dB(8degree polishing)≥25dB
    Durability<0.3dBtypical change, 200 matings
    Interchangeability≤0.2dB
    Tensile strength>70N
    Operating Temperature-40 to + 85°C


    MTP Interference index :


    Connector typeTesting itemsMinMax
    MTP PCROC_X(abs)(mm)500
    ROC_Y(abs)(mm)50
    Angle_X(deg)-0.20.2
    Angle_Y(deg)-0.20.2
    Max.DH.All Fiber(nm)-600600
    Max.DH.Ave(nm)-300300
    Max.DH.Adj(nm)-300300
    Max. Core Dip(nm)-300300
    Fiber height(nm)-300300
    ROC_X(abs)(mm)10003000
    MTP APCROC_X(abs)(mm)500
    ROC_Y(abs)(mm)50
    Angle_X(deg)-0.20.2
    Angle_Y(deg)7.88.2
    Max.DH.All Fiber(nm)-600600
    Max.DH.Ave(nm)-300300
    Max.DH.Adj(nm)-300300
    Fiber height(nm)

    MTP Connector Types


    21
    MPO Male with PinsMPO Female without Pins

    Two other clearly visible features are the noses and guide grooves (keys) on the top side.

    (Note: Female connector need to connect with male connector type.)


    Pre-terminated MTP Technology-Polarity


    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket

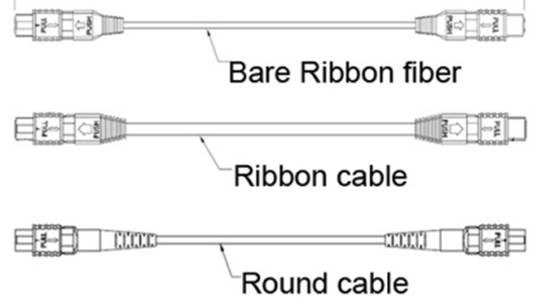

    Cable Structure:


    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket

    AVAILABILITY:

    • Ribbon and bundle cable available;
    • Patch cord, pigtail cable assemblies available.
    • MT-MT ribbon patch cord is available.
    • MTP Loopback available

    Features:

    • Low insertion loss, high return loss

    • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

    • Economical solution for mass-termination of fiber

    • Designed for low loss and standard loss SM and MM applications

    • Ruggedized round cable, oval cable and bare ribbon options available

    • Color coded housings available to differentiate fiber type, polish type and/or connector grade

    • Good in repeatability and exchangeability


    Highlights : Push-pull tab MTP connector is easy to install and remove with one hand

    How to Choose The Right Fiber Optic Cable Type?


    PS: The difference of OM4 and OM3 fiber mode as the following
    1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
    2. The effective modal bandwidth for OM4 is more than double that of OM3.
    3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

    DesignationFiber Dia.(μm)Type10Gbps Ethernet 10GBASE SR/LR40Gbps Ethernet 40GBASE SR4/PLRL4100Gbps Ethernet 100GBASE SR10/IR4
    OM162.5/125Multimode33 Meters (SR)Not supportedNot supported
    OM250/125Multimode82 Meters (SR)Not supportedNot supported
    OM350/125Multimode300 Meters (SR)100 Meters (SR4)100 Meters (SR10)
    OM450/125Multimode400 Meters (SR)150 Meters (SR4)150 Meters (SR10)
    Singlemode9/125Singlemode10KM at 1310nm (LR)1KM (PLRL4)2KM (IR4 PSM)


    High Quality MTP Cable Guarantee

    1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.

    2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.

    3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket


    Packaging


    This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
    .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
    Qty . Packing can be customized.



    Company Information:


    OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.


    dustfree wrokshop.jpg


    OM4 MTP Male 24F SX 50 / 125μm MTP Trunk Cable With G651 Magenta LSZH Jacket


    FAQ:


    1. Are you the real factory?

    Yes,we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable
