Single Mode 0.9mm FTTH Products LC UPC Fast Install Connector

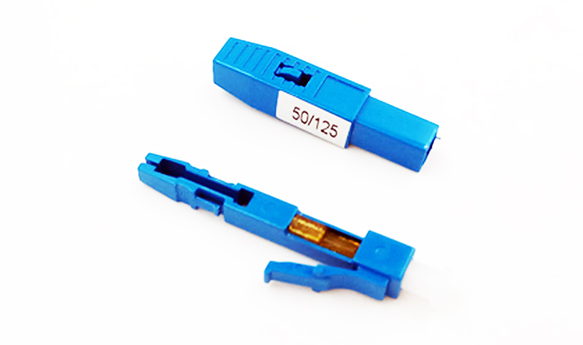

LC Fast install connector for 0.9mm cable(Fast Install connector)
Field installation connector also be called Fast install connector is a new kind of connector that could be used in FTTH project
scene. They don’t need to polishing, no epoxy. They could be
installed in the field and make connection less than two minutes.
Of course, It don’t need fused the fiber. Just some little tools
enough, so it could save time and cost.
The Field Assembly Connector series are already a popular solution
for optical wiring inside buildings and floors for LAN & CCTV
applications and with the expansion of FTTH, is already proving
itself to be the connector of choice by incumbents, municipalities,
utilities & alternative carriers. Our Field Assembly Optical
Connector series are now available in SC, LC, or FC variants,
catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode
and multimode fiber types, including Multi-mode 62.5/125um and
Multi-mode 50/125um. The single-mode versions are available with
SPC or APC ferrules.The Field Assembly Connector products have been
factory-polished, eliminating the need for any polishing materials,
thereby enabling the preparation and termination of optical fibers
in a fraction of the time of other conventional methods.
Assembly of the FC type quick connector requires only normal fiber
preparation tools: a fiber stripping tool, wipes and a fiber
cleaver. No electrical power supply is needed. Just Strip the
buffer, cleave and clean the fiber and then insert the fiber into
the Fast Connector. Installation takes just minutes and couldn't be
easier.
The connector also uses V-groove mechanical splice principals and
therefore the use of an epoxy is not required for the termination
of the connector. This Fast Connector offers convenience in
assembling and strong stability. It allows simple optical core
connection without any additional practices, or adhesives. It does
not require a working space by connecting itself in the challenging
environments such as a telephone pole and a manhole. It reconnects
the cables and reduces the connection defect rate by an installer
error in the field.
Feature:
• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and
consideration
• Uses proven, molded v-groove technologies
Specifications
| Connector Type | LC | Polishing | UPC/APC/PC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Single mode 50/125um OM3 |
| Cable Diameters | 0.9 mm Simplex cable | Dimension | 50mm |
| Insertion Loss | ≤0.3dB(typical) ≤0.5dB(Max) | Return Loss | UPC≥45dB PC≥30dB APC≥55dB |
| Tension Strength | ≥50N | Operating Temperature | -40°C~+75°C |
Application in FTTX:
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks
• Repair and replacement requirements
• Fiber optic equipment
