0.9mm Simplex Fiber Optic Pigtail E2000 APC Singlemode Jumper LSZH PVC

Ask Lasest Price
Brand Name :	OEM or OMC
Model Number :	E2000 APC SM SX 0.9mm pigtail
Certification :	ISO9001, RoSH
Price :	Negotiable
Payment Terms :	Western Union, T/T, Paypal
Supply Ability :	500000pcs per month
Delivery Time :	3-7days

Add to Cart

Product Details
Company Profile

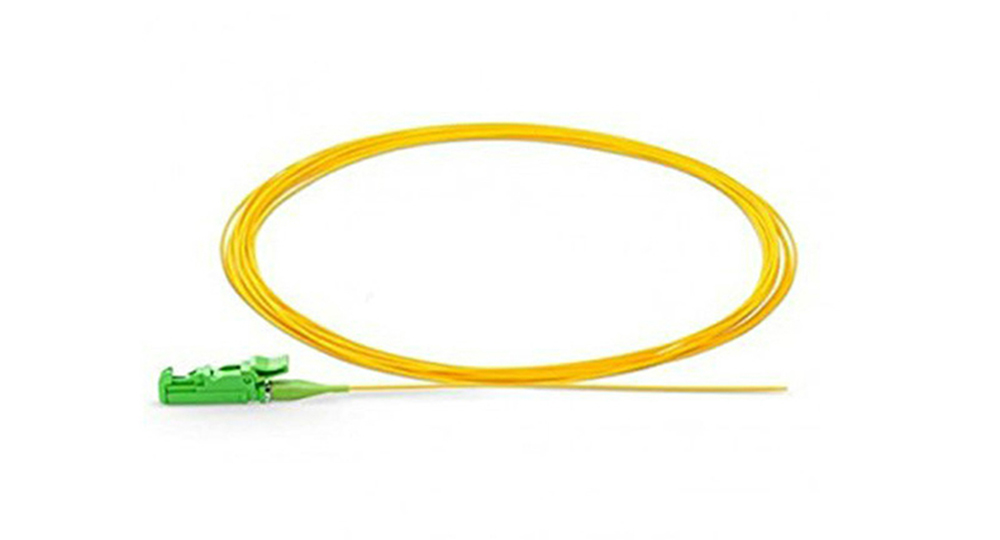

0.9mm Simplex Fiber Optic Pigtail E2000 APC Singlemode Jumper LSZH PVC

0.9mm Simplex Fiber Optic Pigtail E2000 APC Singlemode Jumper LSZH PVC

Fiber Optic Pigtail E2000 APC Fiber Optic Singlemode 9 / 125 Pigtail 0.9mm Simplex Jumper LSZH/PVC

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Connector’s Standard:

E2000: IEC61754-15

Optical Specification

Connector	E2000	Jacket OD(mm)	0.9
Fiber Mode	9/125μm	Jacket Color	Blue,Orange,Green,Brown,Grey,white, red,black,yellow,violet,pink,aqua
Polish	APC/UPC	Wavelength	SM:1310/1550nm
Cable Type	Simplex	Jacket Material	LSZH/PVC
Insertion loss	≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B)	Buffer	Tight buffer,Semi-tight buffer Loose Buffer
Return loss	SM APC ≥ 60dB(min)	Interchangeability &Vibration	≤0.2dB
250um Color coded	Available	Operating &Storage temperature	-45~85°C

Geometric Specification (only for 3D interferometer tested)

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		------	8°± 0.5°

End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Application

Optical fiber communication systems engineering.

Fiber optic data communication network.

Fiber CATV engineering.

Other optical technology tests.·

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs

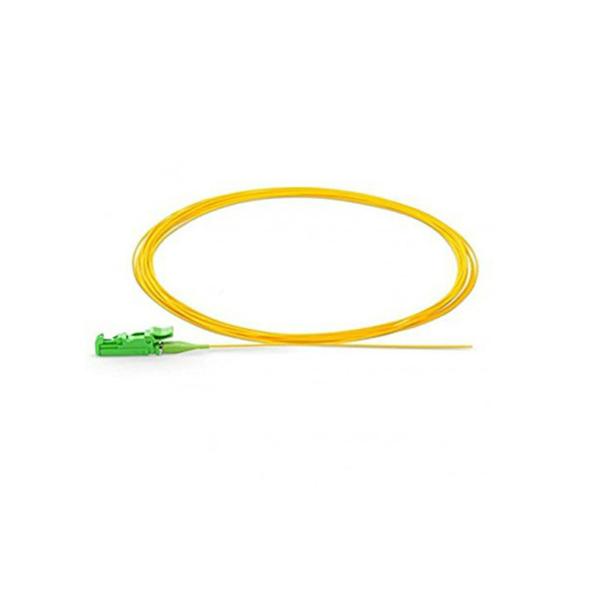

0.9mm Simplex Fiber Optic Pigtail E2000 APC Singlemode Jumper LSZH PVC

FAQ:

1. Are you the real factory?

Yes, we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
