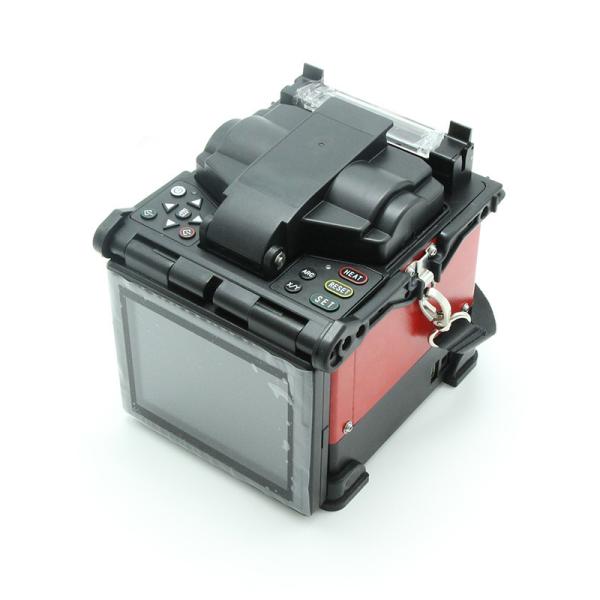

OMCFS 118 FTTH Fiber Fusion Splicer Fiber Optic Splicing Machine
Fiber Fusion Splicer High Precision FTTH Fiber Fusion Splicer
OMCFS-118 Fiber Optic Splicing Machine
OMCFS-118 Handhold Fusion Splicer, with high performance price
ratio, is the main product of OMC Company. With SAMLL& smart
appearance, reliable quality, OMCFS-118 is a special design for the
installation, operation and maintenance of optical fiber specially
design a precision, durable, convenient optical fiber construction
instrument. Widely used in the construction, inspection,
maintenance of FTTX project.
Features
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 150 X and Y view
5 inch 4:3 digital high-quality LCD screen, observe X and Y view at
same time
Three in one fixture, splicing single fiber, cable indoor and
pigtail
Available: OEM SERVICE.
Available language: English, Russian, Spanish, Portuguese, Italian,
French, German
Specification
| Model | OMCFS-118-1 | OMCFS-118-2 |
| Splicing Type | SM, MM, DS, NZDS Fiber&Cables | SM, MM, DS, NZDS Fiber&Cables and SC Fusion splice-on Connector |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Available language | English, Russian, Spanish, Portuguese, Italian, French, German |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8～16mm |
| Fiber Image/ Magnification | 300/150 |
| View Display | 5 inch digital high quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
| Battery Capacity | 300 cycles splicing and heating, 3 hours charging time (splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at
night |
| Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input:
AC100-240V, output: DC13.5V/4.5A |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew) |
| Weight | 1.6KG (including battery), 1.98KG (excluding battery) |
| Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |
Our Services
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
