    12 cores MTP ( male ) - LC Fanout 0.9mm 30cm OM3 10G - 100G for MTP-LC cassette & Patch panel


    12 cores MTP ( male ) - LC Fanout 0.9mm 30cm OM3 10G - 100G for MTP-LC cassette & Patch panel


    12F MTP– LC/SC/FC/ST Fanout 0.9mm cable is designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MTP adapter panel and MTP trunk.


    MTP products’ Connector’s Details


    ConnectorFiber Channel
    MTP CONNECTOR

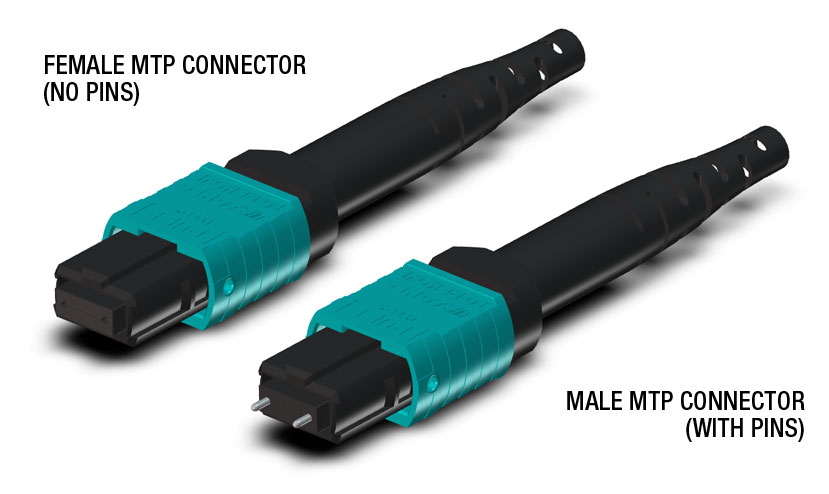

    MTP Male Connectors12 Fibers
    Note: Female connector need to connect with male connector type.
    ConnectorReferenceHousing Details
    MTP SinglemodeIEC 61754-7

    SM APC: Green connectors+black boot (Standard Loss MTP)

    SM APC: Yellow connectors+black boot (Elite MTP)

    MTP MultimodeIEC 61754-7OM3&OM4 PC: Aqua connectors+black boot (Standard Loss&Elite MTP)
    • Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
    • Structured cabling per TIA-568-C
    • 10G Fiber Channel Compliant
    • 40G and 100G IEEE 802.3

    Other connectors’ Industrial Standard


    LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.


    Available for


    OM3 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000


    MTP-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification


    Spec items.Single mode (APC 8-degree polished)Multimode (PC Flat polish)

    Insertion loss (MTP)

    (IEC 61300-3-34)

    Standard MTP:≤0.75dB(max), ≤0.35dB(Typical)

    Elite MTP:≤0.35dB(max), ≤0.20dB(Typical)

    Standard MTP:≤0.6dB(max), ≤0.35(Typical)

    Elite MTP:≤0.35dB(max) , ≤0.20dB(Typical)

    Insertion loss (LC/SC/FC/ST)

    (IEC 61300-3-6)

    ≤0.3dB≤0.3dB
    Return loss(MTP)≥60dB(8degree polishing)≥25dB
    Return loss(LC/SC/FC/ST)APC≥60dB; UPC≥50dB≥35dB
    Durability<0.3dBtypical change, 200 matings
    Interchangeability≤0.2dB
    Tensile strength>70N
    Operating Temperature-40 to + 85°C

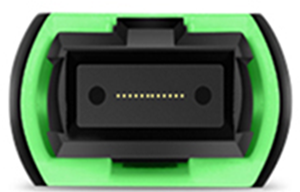

    MTP End-Face 3D Interference Index


    Item (IEC-61300-3-30)MinimumMaximum
    Radius of curvature (mm)ROC-X(ABS)2000
    ROC-Y(ABS)50mm
    AngleAngle-X-0.2°-0.2°
    Angle-YAPC7.85°8.15°
    PC-0.2°-0.2°
    Fiber height (nm)1000nm3500nm
    Max.DH.All Fiber:-300nm300nm
    DH.Adj:-300nm300nm
    DH.Ave Fiber:-300nm300nm
    Core Dip:SMN/AN/A
    MM-200nm300nm

    LC/SC/FC/ST End-Face Geometry 3D Interference Index


    Items Connector PC End-face APC End-face Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm LC/MU 7~25 mm 5~15 mm Apex Offset ≤50 um Fiber Spherical Height +/- 100 nm Angular Offset ------ 8°± 0.5°


    LC/SC/FC/ST End-face Quality (SM)


    ZoneRange (μm)ScratchesDefectsReference
    A: Core0 to 25NoneNoneIEC 61300-3-35:2015
    B: Cladding25 to 115NoneNone
    C: Adhesive115 to 135NoneNone
    D: Contact135 to 250NoneNone
    E: Rest of ferruleNone

    None


    LC/SC/FC/ST End-face Quality (MM)


    ZoneRange (μm)ScratchesDefectsReference
    A: Core0 to 65NoneNoneIEC 61300-3-35:2015
    B: Cladding65 to 115NoneNone
    C: Adhesive115 to 135NoneNone
    D: Contact135 to 250NoneNone
    E: Rest of ferruleNone

    None


    Features:

    • 100% pre-terminated and tested in factory to ensure transfer performance.
    • Low insertion loss, high return loss
    • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
    • Economical solution for mass-termination of fiber
    • Designed for low loss and standard loss SM and MM applications
    • Ruggedized round cable, oval cable and bare ribbon options available
    • Color coded housings available to differentiate fiber type, polish type and/or connector grade
    • Good in repeatability and exchangeability

    Application:

    • Data communication network.
    • Optical System Access network.
    • Storage area networking fiber channel.
    • High density architectures.
