ST LC Hybrid Simplex Single Mode Fiber Optic Coupler Female To
Female
ST LC Hybrid Simplex Single Mode Metal Fiber Optic Adaptor Fiber
Coupler Female to Female Hybrid Fiber Optic Adapter
Female to Female Hybrid Adapter are developed to couple and mate
two different (hybrid) connector plugs. The housing of the Adapters
of the last generation has a reference key for the right position
coupling and zirconia or phosphorus bronze split sleeve for high
alignment.

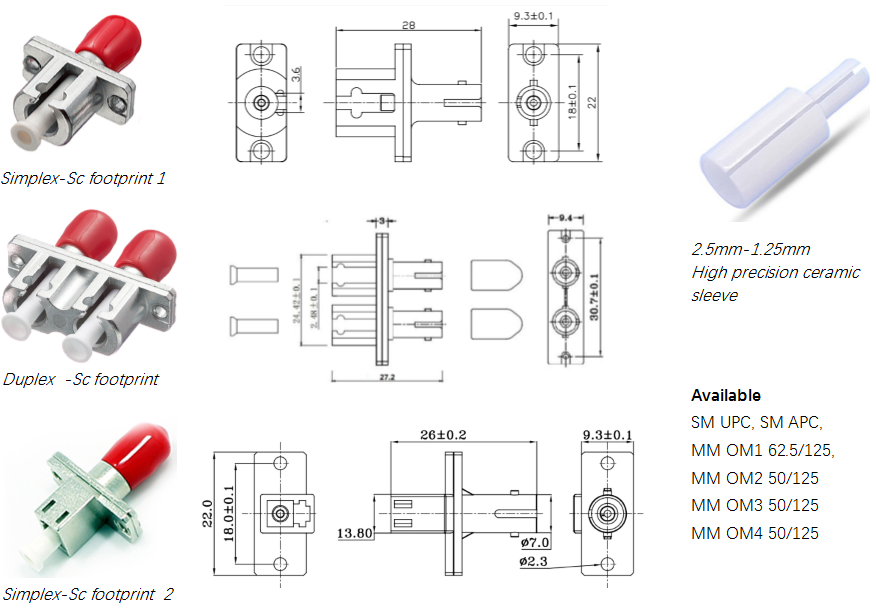

This LC(Female) to ST(Female) SC footprint type fiber optic hybrid
adapter, Converting LC connector to ST Connector. Variable LC
interface conversion ST interface. Provided a simple and reliable
solution for connecting two different optic fiber transmission
joints.
Material
| Parts name | Material | Color |
| Housing body | Zinc alloy | - |
| Sleeve | High precision Ceramic sleeve | White |
| Dust Cover | ABS/Rubber | White/red/green/black |
Specification
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.1dB Max. |
| Withdrawal force(g/f) | 200~600 |
| Storage Temp | -40～+85 |
Products details
Features
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Applications
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Our Services
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
