96F 128F 144F MPO Patch Panel 19' 1RU Fixed Type FHD Patch Panel
96F/128F/144F MPO/MTP-LC fiber optic patch panel 19' 1RU High
density China made Fixed type FHD Patch panel
1U MTP/MPO-LC Angled patch panel offers an expandable deployment,
for implementations in 40G/100G networks, in the meantime,
providing greater protection to the installed patch cords in main,
horizontal and equipment area of data center, telecommunication,
LAN network and FTTH etc.
Products Details
| Total Fiber Count | 96 Fibers | Fiber Type | OS2 9/125µm SMF OM3 50/125µm MMF OM4 50/125µm MMF |
| Front Adapter Type | LC UPC Duplex | Rear Adapter Type | MTP/MPO (keyup-keydown) |
| Front Interfaces | 144 | Rear Interfaces | 12 |
| Insertion Loss | MPO/MTP≤0.35dB, LC≤0.3dB | Return Loss | MPO/MTP≥60dB(SM)20dB(MM), LC≥50dB(SM)35dB(MM) |
| MTP Adapter | Key up to key down | Cable Polarity | Polarity A/B |
| Cassette Type | 1RU 19' Angled | Dimensions | 44.3mmx 483mmx 220.2mm |
Panel Drawing
1U 96-144 Fibers Angled Patch Panel
With angled front to small depth for compact design
Equipped with MPO/MTP-LC Elite cables for high speed in network
infrastructure
Ready-to-install panel optimizes performance and ensures network
uptime
Related accessories
MPO/MTP(Male)-LC 8F 0.9mm fanout 30cm
MPO/MTP(Male)-LC12F 0.9mm fanout 30cm
MPO/MTP Adapter
LC Duplex adapter

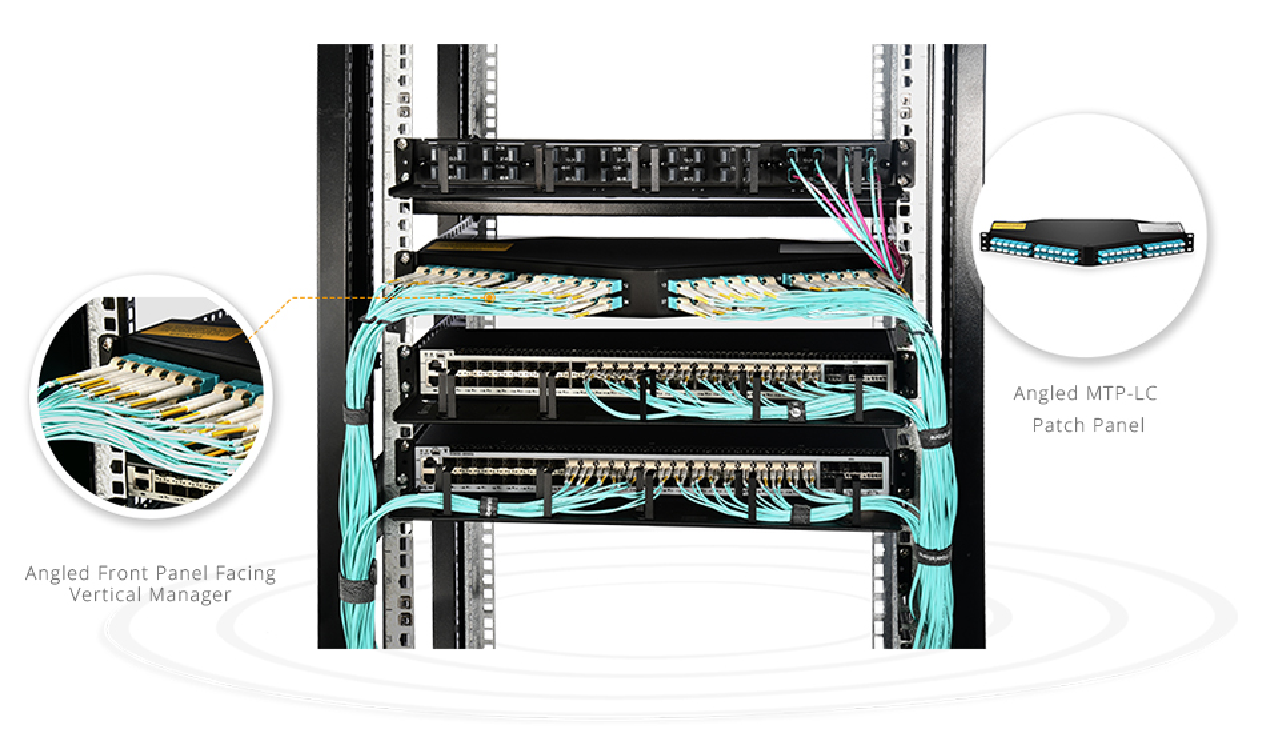

Slanted Design to Directly Routing
For angled patch panel, it enables faster installation to vertical
cable managers and eliminates the need for horizontal cable
management
Highlights:
Internal angled cable managers design facilitates proper bend
radius to easier get at the cables and simplifies termination
