FTTH Outdoor Fiber Optic Patch Cables SC APC-SC UPC 3.5mm G657B3 LSZH Black

Ask Lasest Price
Brand Name :	OMC or OEM
Model Number :	SC APC - SC UPC 3.5mm LSZH Simplex Patch Cable
Certification :	ROHS and ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	200000 per month
Delivery Time :	2-4 work days

Add to Cart

Product Details
Company Profile

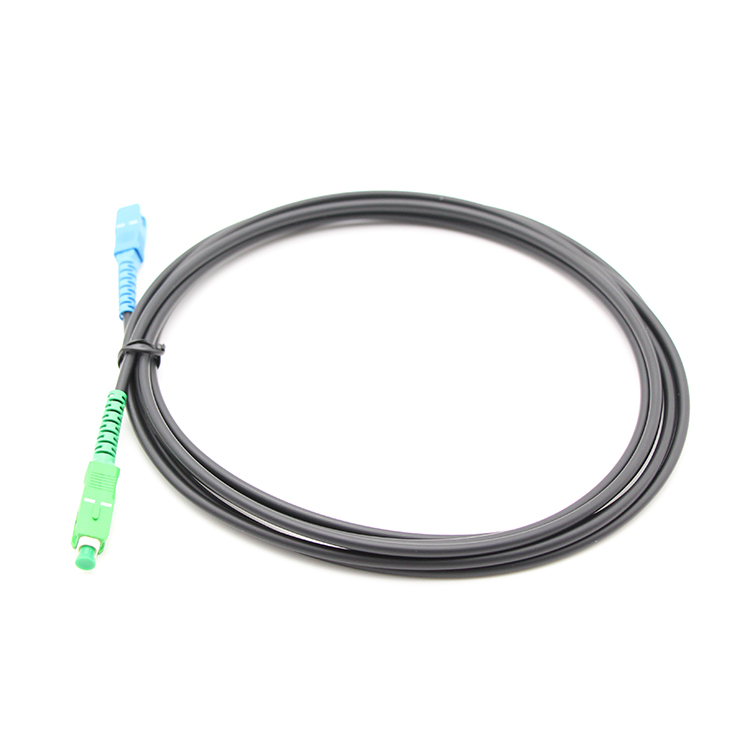

FTTH Outdoor Fiber Optic Patch Cables SC APC-SC UPC 3.5mm G657B3 LSZH Black

FTTH Outdoor Fiber Optic Patch Cable SC APC - SC UPC 3.5mm G657A2 LSZH Simplex Patch Cords Black

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the hightest in network performance.

Connector’s Standard:

SC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Optical Specification

Connector	SC-SC	Polish	APC-UPC
Fiber Mode	9/125μm, G657B3	Jacket Color	Black
Cable OD	3.5mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	LSZH
Insertion loss	≤0.3dB(IEC Grade C)	Crush Resistance(N/100mm)	Long term 100; short term:500
Return loss	SM APC ≥ 60dB(min) SM UPC≥ 50dB(min)	Interchangeability &Vibration	≤0.2dB
Tensile Strength(N)	Long term 100; short term:350	Operation&Storage temperature	-45~85°C

End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Length Tolerance

Overall Length(L)(m)	length of tolerance(cm)
0<L<1	+5/-0
1<L<10	+10/-0
10<L<40	+15/-0
40<L	+0.5% x L/-0

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

Quality contorl.jpg

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
