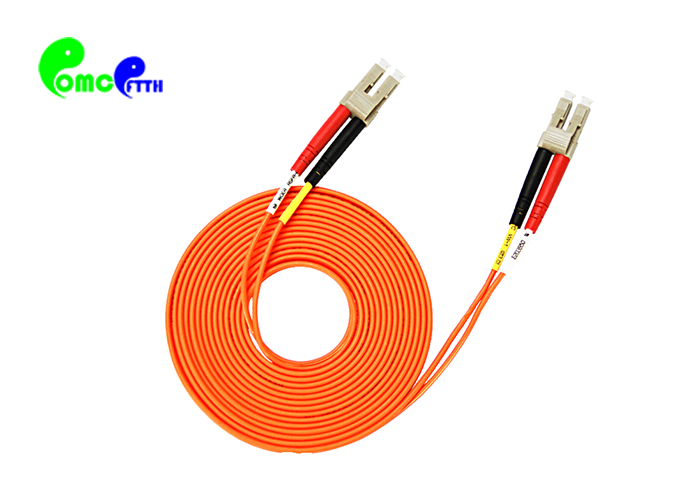

    Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC

    Ask Lasest Price
    Brand Name : OEM or OMC
    Model Number : Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC
    Certification : ROHS and ISO
    Price : Negotiable
    Payment Terms : Western Union, T/T, Paypal
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC

    Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC Cable


    FIber Patch Cables are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.


    OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

    Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.


    Connector’s Standard:


    SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

    LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

    FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

    ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

    MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

    MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

    DIN: IEC61754-3

    E2000: IEC61754-15


    Available Connector:



    Patch cable types



    SIngle mode Patch cables


    This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.


    Specification:


    Connector TypeLC,FC,SC,STPolish TypeUPC to UPC
    Fiber ModeOS2 9/125μmWavelength1310/1550nm
    Insertion Loss≤0.3dBReturn Loss≥50dB
    Fiber GradeG.657.A1 (Compatible with G.652.D)Minimum Bend Radius10mm
    Attenuation at 1310 nm0.36 dB/kmAttenuation at 1550 nm0.22 dB/km
    Fiber Count1-144 coresCable Diameter0.9-3.0mm
    Cable JacketPVC,LSZH,OFNR,OFNPPolarityA(Tx) to B(Rx)
    Operating Temperature-20~70°CStorage Temperature

    -40~80°C


    MM OM1 62.5/125 Patch cables

    This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.


    Specification:

    Connector TypeLC ,SC,FC,ST....Polish TypeUPC to UPC
    Fiber Count1-144coresFiber ModeOM1 62.5/125μm
    Wavelength850/1300nm1G Ethernet Distance280m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeG.651Minimum Bend Radius15mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Cable JacketPVC,LSZH,OFNR,OFNPCable Diameter0.9-3.0mm
    PolarityA(Tx) to B(Rx)Operating Temperature-20~70°C

    MM OM2 50/125 Patch cables

    This 50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.


    Specification:


    Connector TypeLC,SC,FC,ST,......Polish TypeUPC to UPC
    Fiber Count1-144coresFiber ModeOM2 50/125μm
    Wavelength850/1300nm1G Ethernet Distance550m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeBend InsensitiveMinimum Bend Radius7.5mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Cable JacketPVC,OFNP,OFNR,LSZHCable Diameter0.9-3.0mm
    PolarityA(Tx) to B(Rx)Operating Temperature-20~70°C

    MM OM3 50/125 Patch cables

    This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.


    Specification:


    Connector TypeLC,SC,FC,ST......Polish TypeUPC to UPC
    Fiber Count1-144FFiber ModeOM3 50/125μm BIF
    Wavelength850/1300nm10G Ethernet Distance300m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeG651Minimum Bend Radius7.5mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Cable JacketOFNR,OFNP,PVC,LSZHCable Diameter0.9-3.0mm
    PolarityA(Tx) to B(Rx)Operating Temperature-20~70°C


    MM OM4 50/125 Patch cables


    This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.


    Specification:

    Connector TypeLC ,SC,FC,ST....Polish TypeUPC to UPC
    Fiber ModeOM4 50/125μmWavelength850/1300nm
    40G Ethernet Distance150m at 850nm100G Ethernet Distance100m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeBend InsensitiveMinimum Bend Radius7.5mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Fiber Count1-144 coresCable Diameter0.9-3.0mm
    Cable JacketLSZH,PVC,OFNP,OFNRPolarityA(Tx) to B(Rx)
    Operating Temperature-20~70°CStorage Temperature-40~80°C


    MM OM5 50/125 Patch cables


    OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.


    Specification:

    Connector TypeLC,SC,FC,ST......Polish TypeUPC to UPC
    Fiber ModeOM5 50/125μmWavelength850/1300nm
    40G Ethernet Distance440m at 850nm100G Ethernet Distance150m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeBend InsensitiveMinimum Bend Radius7.5mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Effective Modal Bandwidth (at 850nm)≥4700 MHz·kmEffective Modal Bandwidth (at 953nm)≥2470 MHz·km
    Fiber Count1-144 CoresCable Diameter0.9-3.0mm
    Cable JacketPVC,LSZH,OFNP,OFNRPolarityA(Tx) to B(Rx)
    Operating Temperature-20~70°CStorage Temperature-40~80°C


    Length Tolerance


    Overall Length(L)(m)length of tolerance(cm)
    0<L<1+5/-0
    1<L<10+10/-0
    10<L<40+15/-0
    40<L+0.5% x L/-0

    package-patch cord


    High Quality Fibre Optic Patch Cable Guarantee

    13


    Quality contorl.jpg


    Certification:

    Our products are confirmed by these certifications

    Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC





    FAQ:


    1. Are you the real factory?

    Yes,we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    Connector TypeLC,SC,FC,ST,......Polish TypeUPC to UPC
    Fiber Count1-144coresFiber ModeOM2 50/125μm
    Wavelength850/1300nm1G Ethernet Distance550m at 850nm
    Insertion Loss≤0.3dBReturn Loss≥30dB
    Fiber GradeBend InsensitiveMinimum Bend Radius7.5mm
    Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
    Cable JacketPVC,OFNP,OFNR,LSZHCable Diameter0.9-3.0mm
    PolarityA(Tx) to B(Rx)Operating Temperature-20~70°C
