Outdoor 1 Core G657A1 Fiber Optic Patch Cables LSZH Drop Cable
Outdoor 1 Core Mini SC APC SM Single Mode G657A1 LSZH Drop Cable
Waterproof Connector Patch Lead Fiber Cable
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH. 3.Deployment in
Remote Radio Head cell tower applications.
3. Fiber optic communications in harsh outdoor environments
4. Outdoor communication equipment connection
5. waterproof fiber equipment SC port Remote wireless base station
6. FTTH wiring project
Features
1. Cost effective solution for in house termination. 2.Low
insertion loss and added loss.
3. Height of attenuation.
4. IP67 water, dust proof and corrosion resistant
5. The material in the jumper cable are all-weather and
UV-resistant. 6.Mechanical performance: IEC 61754-4 standard.
7. RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Spec |
| SC | IEC 61754-4 | Single mode Simplex, APC: Green connectors |

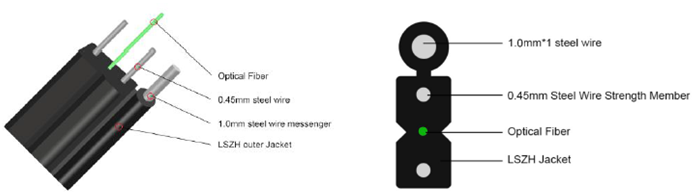

Cable Types
G657A2 Fiber
| FiberCount | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature |
| Short term | Long term | Singlemode |
| 1 | 2.0±5.0 | 25kg | 600N | 300N | 1310nm ≤0.4dB/km | 20D | -20℃～+70℃ |
| 1550nm ≤0.3dB/km |
Specification
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/APC≥60dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
End-Face Qualty (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
