2m Monomode Single Mode Fiber Optic Patch Cables 2.0mm Duplex
Optical Patch Cord

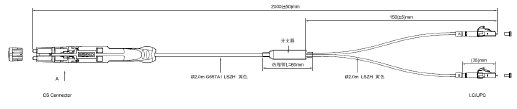

2m Monomode Singlemode Duplex CS - LC Fiber Optic Patch Cords High
Density Fiber Patch Cable
Senko’s new CS connector is specifically designed for Data Centre
400G optimization. To accommodate the “lightspeed” upgrades
currently taking place in hyperscale DCs, the reduced size CS
Connector is not only capable of delivering low insertion and high
return loss comparable to existing LC connectors, but with
significantly reduced footprint. The CS connector is a miniature
single-position plug which is characterized by duo cylindrical,
spring-loaded butting ferrule(s) of a 1.25 mm typical diameter, and
a push-pull coupling mechanism. The optical alignment mechanism of
the connectors is a rigid bore sleeve or a resilient sleeve.
The CS connector meets the requirement for 2x100G/200G CWDM4
transceivers requiring two pairs of TX/RX. Our CS Cable Assembly
support next-generation 200/400 Gbps QSFP-DD and OSFP transceivers
with optimized performance
Optical Specifications
| Connector | LC, CS | Jacket OD(mm) | 2.0 |
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow/Blue/White; |
| Polish | UPC | Wavelength | SM:1310/1550nm |
| Cable Type | Dual round | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss | SM UPC ≥ 50dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (For special request)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm |
| Apex Offset | ≤50 um |
| Fiber Spherical Height | +/- 100 nm |
| Angular Offset | ------ | 8°± 0.5° |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
