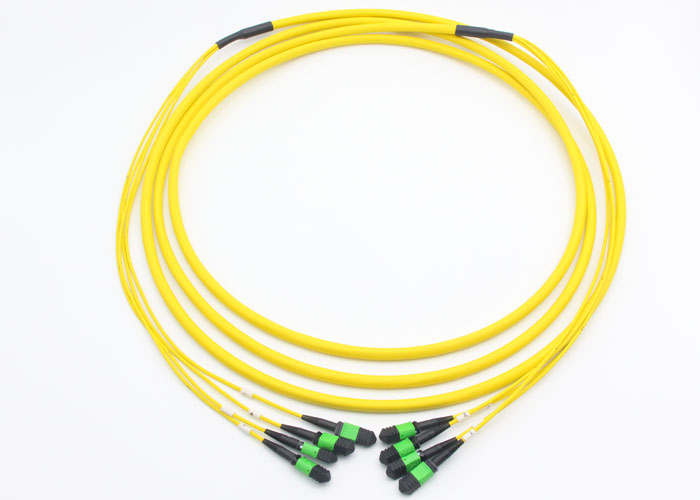

MPO Trunk Cable Breakout 48F MPO Female 9 / 125μm With Yellow LSZH
Jacket
MPO Fiber Patch Cord are terminated with MPO connector on both end.
All of OMC’s MPO Connectors are from Taiwan, Japan etc. MPO patch
cord is a kind of high density cable assemblies which is generally
use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5);
Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
MPO patch cord’s Specification:
| MPO/MTP’s spec items. | Single mode (UPC Flat polish, APC 8 degree polish) | Multimode (PC Flat polish) |
| Insertion loss | Standard loss≤0.7dB;Low loss≤0.35dB | Standard loss≤0.5dB;Low loss≤0.35dB |
| Return loss | ≥55dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector
terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
available
Color coded housings available to differentiate fiber type, polish
type and/or connector grade
Good in repeatability and exchangeability
AVAILABILITY:
Ribbon and bundle cable available;
Patch cord, pigtail cable assemblies available.
MT-MT ribbon patch cord is available.
MPO Loopback available
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,
gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,
gigabit up to 1000m
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | -0.2 | 0.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Max. Core Dip(nm) | -300 | 300 |
| Fiber height(nm) | -300 | 300 |
| ROC_X(abs)(mm) | 1000 | 3000 |
| MPO APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | 7.8 | 8.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Fiberheight(nm) | | |
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by
precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing
process, and making all parameters of the polished MT ferrule
complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of
optical testing required for complex and high fiber count cable
assemblies.
MPO Connector Types
Two other clearly visible features are the noses and guide grooves
(keys) on the top side. (Note: Female connector need to connect with male connector type.) |
Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to
guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers,
please choose the Type B Cross as polarity; when it is connected
with other equipment such as MPO LGX Cassette, you can choose any
of the polarities as you need.
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
