Multimode Senko MPO Trunk Cable OM4 12F MPO Male to LC Fanout 0.9mm Cable

Product Categories

OMC Industry Co.Limited

Contact Now

Multimode Senko MPO Trunk Cable OM4 12F MPO Male to LC Fanout 0.9mm Cable

Ask Lasest Price
Brand Name :	OMC or OEM
Model Number :	OM4 12F MPO to LC Fanout 0.9mm
Certification :	ROHS and ISO
Price :	Negotiable
Payment Terms :	Western Union, T/T, alipay, paypal,credit card
Supply Ability :	1000000 pcs per month
Delivery Time :	5~10 working days

Add to Cart

Product Details
Company Profile

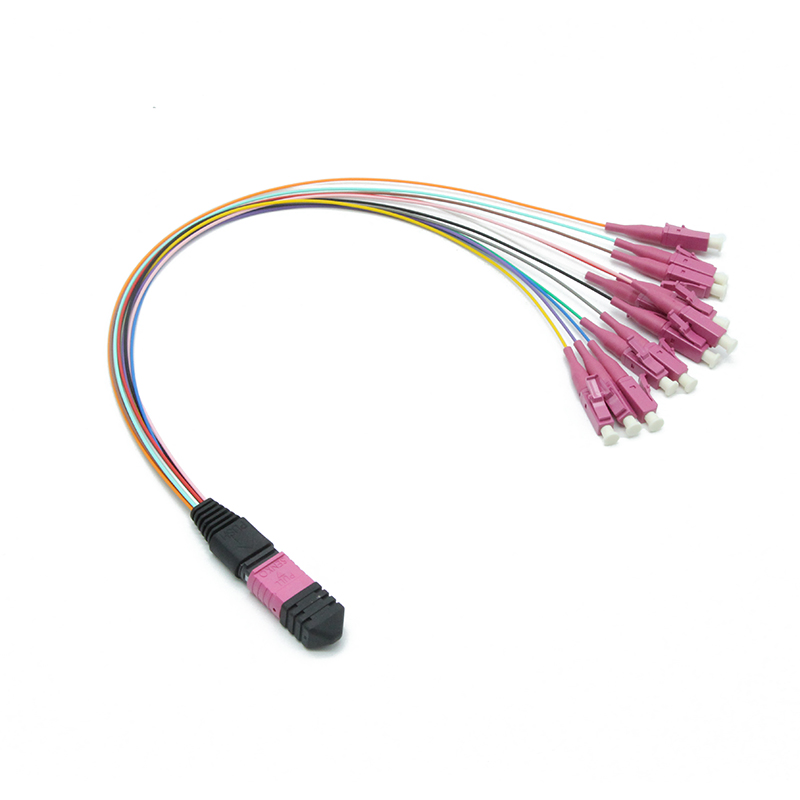

Multimode Senko MPO Trunk Cable OM4 12F MPO Male to LC Fanout 0.9mm Cable

OM4 12F MPO Male to LC Fanout 0.9mm Cable 50 / 125μm Multimode Senko MPO Trunk Cable

MPO (male)-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC/SC/FC/ST connector on each end. It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM3/OM4 8F MPO- LC/SC/FC/ST Fanout 0.9mm cable are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.

Connector	Fiber Channel

MPO Male Connectors	12 Fibers
Note: Female connector need to connect with male connector type.

Products Materials:

Connector

Reference

Housing Details

MPO Singlemode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode

IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

Optical Specifications:

OM4 MPO to LC Fanout 0.9mm Cable OMC-6

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)	Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return loss(MPO)	≥60dB(8degree polishing)	≥25dB
Return loss(LC/SC/FC/ST)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

MPO End-Face 3D Interference Index:

Item (IEC-61300-3-30)			Minimum	Maximum
Radius of curvature (mm)	ROC-X(ABS)		2000
	ROC-Y(ABS)		50mm
Angle	Angle-X		-0.2°	-0.2°
	Angle-Y	APC	7.85°	8.15°
		PC	-0.2°	-0.2°
Fiber height (nm)			1000nm	3500nm
Max.DH.All Fiber:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	SM		N/A	N/A
	MM		-200nm	300nm

LC/SC/FC/ST End-Face Geometry 3D Interference Index:

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		------	8°± 0.5°

Packaging:

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

MPO to LC Fanout 0.9mm Cable Packaging
