    LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell

    Ask Lasest Price
    Brand Name : OMC or OEM
    Model Number : LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, Paypal, Credit Card
    Supply Ability : 300000 pcs per month
    Delivery Time : 3-5 days after payment confirmed
    Certification : ROHS and ISO
    • Product Details
    • Company Profile

    LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell

    LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell


    Fiber Optic Loopback modules are also called optical loopback adapters.They are designed for testing, engineering and the burnin stage of boards or other equipment. Optical loopback adapters provide systemtest engineers a simple but effective way of testing the transmission capability and the receiver sensitivityof network equipment.

    Fiber Optic Loopback is provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations.

    When used in testing applications, loopback signals are used for diagnosing problems. The best practice is to send a loopback test to network equipment, one at a time for isolating the problem.


    Fiber optic loopbacks are designed in a compact footprint. They are compliant with fast Ethernet, fiber channel, ATM and Gigabit Ethernet.

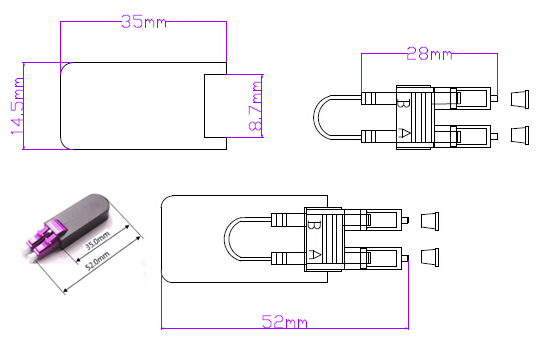

    Mini LC multimode loopback is suit for 0.9mm cable and 0.25mm fiber.


    Connector’s Standard:


    LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.


    Specification:

    ItemsBIF Single mode Fiber-G657B3BIF Multimode fiber- 50/125 or 62.5/125
    Insertion loss(typical)0.2dB0.2dB
    Insertion loss(Max)0.3dB0.7dB
    Return lossUPC>50dB; APC>60dB>35dB
    Operating& Storage temperature range-40°C to +75°C
    Repeat Ability< 0.5dB (500 Cycle Passed)

    Product Details


    Application in Data Center


    Collocated with 10G or 40G or 100G LC/UPC interface transceivers


    Which to Choose for a Specific Transceiver?


    Considering the common features of the transceiver and the loopback, we should think about the connector type, polish type, and cable type when selecting a loopback for the transceiver. The selection guide for some mostly used transceiver modules is summarized in the following tables.


    Table 1: Loopback choices for 10G SFP+ transceivers


    ModelInterface typeCable TypeSuited Loopback
    10GBASE-USRLC Duplex (PC)MMFLC/UPC Duplex Multimode Fiber Loopback
    10GBASE-SRLC Duplex (UPC)MMF
    10GBASE-LRLC Duplex (UPC)MMF
    10GBASE-ERLC Duplex (UPC)SMFLC/UPC Duplex Single-mode Fiber Loopback
    10GBASE-ZRLC Duplex (PC)SMF

    Table 2: Loopback choices for 40G QSFP+ transceivers


    ModelInterface typeCable TypeSuited Loopback
    40GBASE-CSR4MTP/MPO (UPC)MMF8/12 Fibers MTP/UPC Multimode Fiber Loopback
    40GBASE-SR4MTP/MPO (UPC)MMF
    40GBASE-PLRL4MTP/MPO (APC)SMF8/12 Fibers MTP/APC Single-mode Fiber Loopback
    40GBASE-PLR4MTP/MPO (APC)SMF
    40GBASE-LR4LC Duplex (PC)SMFLC/UPC Duplex Single-mode Fiber Loopback
    40GBASE-LR4LLC Duplex (UPC)SMF
    40GBASE-ER4LC Duplex (UPC)SMF
    40GBASE-LX4LC Duplex (UPC)MMF/SMFLC/UPC Duplex Multimode/Single-mode Fiber Loopback

    Table 3: Loopback choices for 100G QSFP28 transceivers


    ModelInterface typeCable TypeSuited Loopback
    100GBASE-SR4MTP/MPO (UPC)MMF8/12 Fibers MTP/UPC Multimode Fiber Loopback
    100GBASE-PSM4MTP/MPO (APC)SMF8/12 Fibers MTP/APC Single-mode Fiber Loopback
    100GBASE-LR4LC Duplex (UPC)SMFLC/UPC Duplex Single-mode Fiber Loopback

    Table 4: Loopback choices for CFP transceivers


    ModelInterface typeCable TypeSuited Loopback
    40GBASE-SR4 CFPMPO/MTP (UPC)MMF8/12 Fibers MTP/UPC Multimode Fiber Loopback
    40GBASE-LR4 CFPSC Duplex (UPC)SMFSC/UPC Duplex Single-mode Fiber Loopback
    40GBASE-FR CFPSC Duplex (UPC)SMF
    100GBASE-LR4 CFPSC Duplex(PC/UPC)SMF
    100GBASE-ER4 CFPSC Duplex(PC/UPC)SMF
    100GBASE-SR4 CFPMPO/MTP (UPC)MMF24 Fibers MTP/UPC Multimode Fiber Loopback

    Conclusion


    This post discusses specific fiber loopback choices for some most commonly used fiber optic transceivers. For other transceiver modules that are not mentioned in this post, we can also know how to choose a suitable loopback for it by getting details about its interface type, physical contact and cable type.


    High Quality Fiber Optic Cable Guarantee

    Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.


    13


    Quality contorl.jpg


    Certification:

    Our products are confirmed by these certifications

    LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell




    Quality LC-LC OM3 Fiber Optic Loopback module Patch cables OM3 , OM4 , 50 /125 LSZH With Plastic Shell for sale
