Flex Angle Boot 9 / 125μm 2.0mm LC UPC To SC UPC Optical Patch Cord
Long Lifespan
OMC flex angle boots for LC&SC fiber optic connectors are
available on any single-mode or multimode patch cord. They are
designed so the installer can pre-bend the boot into any direction
or angle. This position is maintained for optimal network
performance but, can be reshaped at any time or straightened for
connector disconnect. This enables perfect installation of the
connector in unique applications such as, tight constraint areas or
high density environments. These fiber optic patch cords with
LC&SC flex boots are ideal for cable management situations
where additional fiber bend protection is desired.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is
less attenuation when bent or twisted compared with traditional
optical fiber cables and this will make the installation and
maintenance of the fiber optic cables more efficient. It can also
save more space for your high density cabling in data centers,
enterprise networks, telecom room, server farms, cloud storage
networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for
connecting 1G/10G/40G/100G/400G Ethernet connections. It can
transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Product Info:
| Connector | LC To SC | Cable Diameter | 2.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | OFNR |
| Insertion loss | ≤0.12dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G657A2 |
Quality features:
YOFC G.657A2 optic fiber
7.5mm minimum bend radius
Insertion loss and return loss testing
End-face inspection
3D interferometer test
Application:
Geometric Specification (For special request)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm |
| Apex Offset | ≤50 um |
| Fiber Spherical Height | +/- 100 nm |
| Angular Offset | ------ | 8°± 0.5° |
Product Highlights

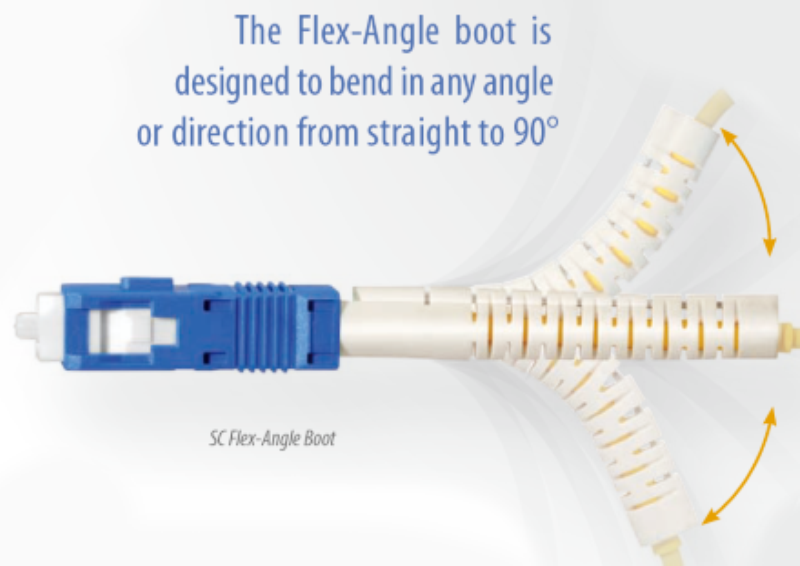

The Flex-Angle boot is designed to bend in any angle or direction
from straight to 90°
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
CUSTOM option
OMC also provides a full set of OEM services, such as fiber
connector, length, color, fiber grade, specification, material,
package etc.
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0
|
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as de
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34
cm . Which carton to be used depends on goods
Qty . Packing can be customized.
How to Choose The Right Fiber Optic Cable Type?
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and
allows 10 Gig / second link distances of up to 550 Meters (compared
to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that
of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000
MHz.km.
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like
buildings, factories, office parks ,campuses and so on. Whether you
choose PVC, LSZH or OFNP jacket depends on where you're going to
run the cable.
