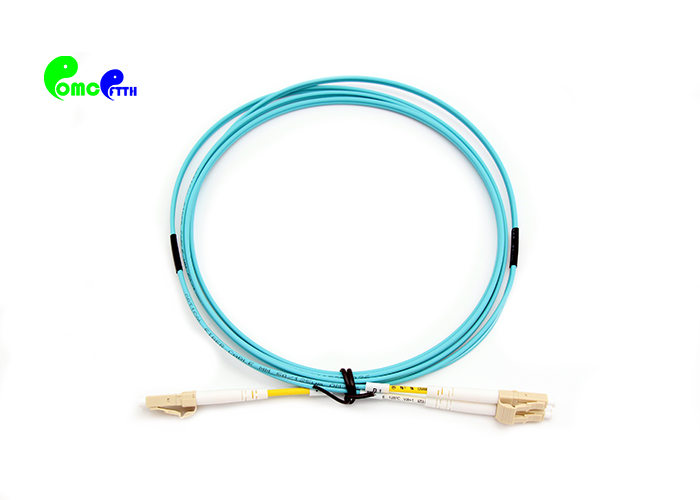

OM4 50 / 125μm 2.0mm 2m IEC Grade B Fiber Patch Cable LC UPC- LC
UPC Zipcord Duplex LSZH Aqua Blue
Patch Cords are used to provide optical connection for fiber optic
electronics. The use of the patch cord provides a quick and easy
method for routing fiber patches in data centers, head-ends,
cellular hubs and central offices.
The 50/125μm OM4 multimode bend insensitive fiber optic cable is
less attenuation when bent or twisted compared with traditional
optical fiber cables and this will make the installation and
maintenance of the fiber optic cables more efficient. It can also
save more space for your high density cabling in data centers,
enterprise networks, telecom room, server farms, cloud storage
networks, and any places fiber patch cables are needed.
This 50/125 OM4 multimode fiber optic cable is ideal for connecting
40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G
Ethernet connections and is the preferred fiber specification for
40G/100G applications.
Products info
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Count | Duplex | Fiber Mode | OM4 50/125μm BIF |
| 40G Ethernet Distance | 150m at 850nm | 100G Ethernet Distance | 150m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
| Fiber Grade | G651 | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | LSZH | Cable Diameter | 2.0x4.1mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
CUSTOM option
OMC provides a full set of OEM services, such as fiber connector,
length, color, fiber grade, specification, material, package etc.
Applications
Telecommunications, Cable TV
LAN, WAN, MAN
Measurement
Sensor technologies
Medical instrumentation and measurement techniques
Industrial applications
Technical performance
YOFC bend insensitive fiber
7.5mm minimum bend radius
Insertion loss and return loss testing
End-face inspection
3D interferometer test
Physical Information
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Bend Insensitive Fiber Optic Cable Structure
A unique refractive trench with low refractive index glass layer in
BIF, which reduces in light dispersion upon twisting and bending,
ensuring network transmission stably and fast.
High Quality Fiber Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more
secure and data transmission more reliable and stable in your
network.
Package:
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
