E2000 APC - E2000 APC 2.0mm Duplex Zipcord Patch Cord SM Customized
Single Mode Fiber Optic Patch Cables
Patch Cords are used to provide optical connection for fiber optic
electronics. The use of the patch cord provides a quick and easy
method for routing fiber patches in data centers, head-ends,
cellular hubs and central offices. The patch cord can be used in
interconnect or cross-connect path connecting the incoming fibers
to the electronic equipment and providing patching within the fiber
paths. Patch Cords include simplex, duplex and Multi-fibers
assemblies.
OMC’s Patch cables are manufactured and tested in compliance with
TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2,
OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit
Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through
rigorous parameter test to ensure the highest in network
performance.
This 9/125 OS2 single mode fiber optic cable is ideal for
connecting 1G/10G/40G/100G/400G Ethernet connections. It can
transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector’s Standard
E2000: IEC61754-15
Description
Premium Performance Fiber Optic Cable
Fiber optic cables are used for connections to data center, CATV,
fiber test equipment, LAN, telecommunication networks, FTTx,
communication rooms, fiber optic communication system, defense
combat readiness, etc.

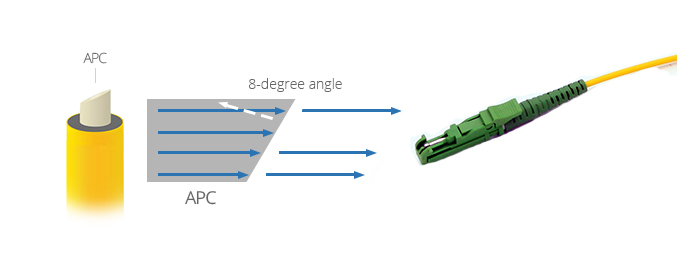

APC (8-Degree Angle)
The angled end face of the APC connector causes reflected light to
reflect at an angle into the cladding. APC connectors are Preferred
for RF video signal transport and FTTx applications.

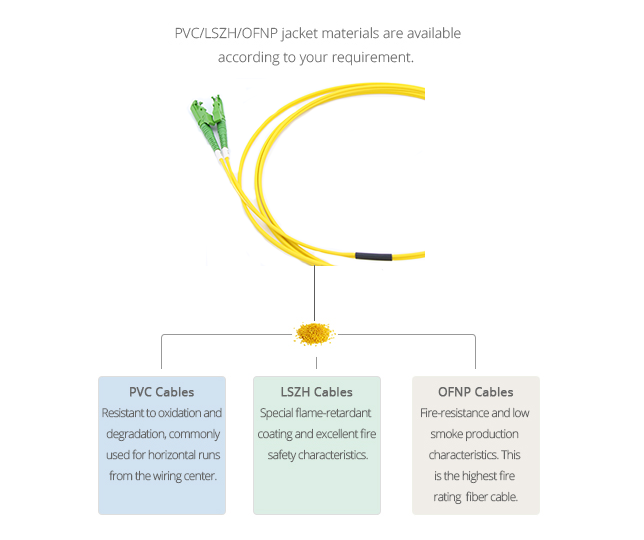

Customized Jacket Material and Cable Diameter
MPO patch cord’s Specification:
| Connector | E2000 | Jacket OD(mm) | 2.0x4.1 |
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow/Blue/White; |
| Polish | APC | Wavelength | SM:1310/1550nm |
| Cable Type | Zip-cord Duplex (Fig 8 Duplex) | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more
securely and data transmission more reliable and stable in your
network.
Packaging & Delivery:
Packaging Details
1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized
Port: Shenzhen
Application:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free
Pallet
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
