ST/ PC - ST/ PC Flat Duplex 3.0mm Fiber Optic Patch Cable Multi Mode OM1 OM2 LSZH Jumper

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Connector’s Standard:

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

Packaging Details

1.Fumigation of wood drum, plywooden drum or wooden drum
2.carton box
3.customized

Port: Shenzhen

Description:

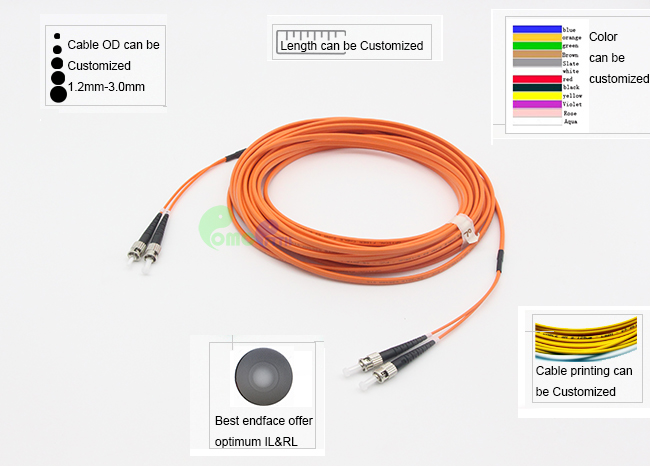

Flat Duplex Patch Cord ST PC-ST PC Multiple Mode Fibre Optic Patch Cable Jumper

Optical Specifications

Connector	ST	Jacket OD(mm)	3.0x5.0
Fiber Mode	50/125μm	Jacket Color	OM2: Orange
Polish	PC	Wavelength	MM:850nm
Cable Type	Flat Duplex	Jacket Material	LSZH/PVC
Return loss	MM P ≥ 35dB(min)	Insertion loss	≤0.3dB(IEC Grade C)
Vibration	≤0.2dB	Interchangeability	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Geometric Specification (For special request)

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		------	8°± 0.5°

End-face Quality (MM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 65	None	None	IEC 61300-3-35:2015
B: Cladding	65 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Standard Compliance

1. TIA 604 (FOCIS)
2. TIA/EIA 492AAAE
3. IEC 61754
4. IEC 60793-2-10
5. IEC61300-3-35
6. YD/T1272.1-2003
7. RoHS, ISO9001 Compliant

Features

1. High quality zirconia ferrules.
2. Good repeatability and interchange.
3. Flame-retardant, rugged and durable jacket.
4. 100% optically tested for insertion loss to ensure high quality

Application:

1. CATV

2. Active dvice termination

3. Telecommunication networks

4. Metro

5. Local Area Networks(LANs)

6. Data Processing networks

7. Test Equipment

8. Premise installations.

9. Wide Area Networks(WANs)

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.

1. self-seal PE bag 2. Bubble bag 3. Paper carton 4. fumig-free Pallet

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

---

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable

         OMC industry co., limited, An ISO 9001:2015 certificated Manufacturer, which was founded by an expert team, has been manufacturing and  exporting FTTX cabling products since 2007. We focus on providing innovative and integrated FTTX cabling solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We help you select the right products for your Optical network’s needs.

         Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

         OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

         We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
