New generation Fast Install Fiber Optic Connector SC ceramic V
groove for FTTH Drop Cable
Fast installation connector also be called Field install connector
is a new kind of connector that could be used in FTTH project
scene. They don’t need to polishing, no epoxy. They could be
installed in the field and make connection less than two minutes.
Of course, It don’t need fused the fiber. Just some little tools
enough, so it could save time and cost.
The Fast Assembly Connector series are already a popular solution
for optical wiring inside buildings and floors for LAN & CCTV
applications and with the expansion of FTTH, is already proving
itself to be the connector of choice by incumbents, municipalities,
utilities & alternative carriers.
Working principle
Key Component –V-Groove

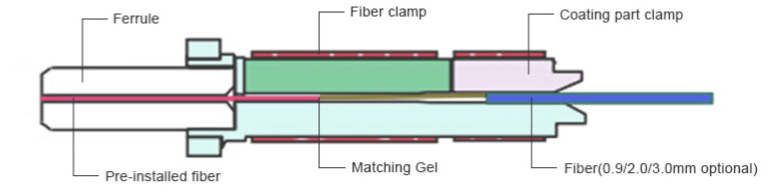

V-groove is a small V shape channel. The input fiber will be
connected with the embedded fiber of Connector in V Groove.
A good V-Groove have a Precise size to make sure the fiber lay at
correct position. At the same time the V Groove should have a good
body stable during different temp change for purpose of good
connection in FTTH cabling.
All of this can be satisfied with a Ceramic V-Groove.
OMC's New SC APC Fast Install Connector embedded a Ceramic V Groove. The Ceramic V groove brings best performance during High and low
Temp change. It offer a very high stable optical single
transmission in FTTX.
Description
| Connector Type | SC | Polishing | UPC |
| Ferrule | Ceramic | V-Groove | Ceramic Material |
| Cable Diameters | 2.0x3.0mm FTTH Drop Cable 1.6x2.0mm FTTH Drop Cable | Length | 55mm |
| Insertion Loss | ≤0.3dB(typical);≤0.5dB(Max) | Return Loss | UPC≥40dB;APC≥50dB |
| Tension Strength | ≥30N | Operating Temp | -40°C~+75°C |
3D Interferometer
| Type | Radius(mm) | Apex offset(μm) | Fiber (nm) |
| PC(Ф2.5 ㎜) | 10～25 | ≤70 | -100~+100 |
| APC(Ф2.5 ㎜) | 5～15 | ≤70 | -100~+100 |
End face appearance
| End face appearance tested by 200 times magnifying glass |
| Test area | Standard |
| area | area coverage | scratch | spot | shine spot/
white spot | crack |
| 1 | Ф25μm within | not allowed | not allowed | no allowed | not allowed |
| 2 | Ф25μm~ Ф125μm | widh≤5μm
qty≤3pcs | Diam≤5μm
qty≤3pcs. | not allowed | not allowed |
| 3 | Ф125μm~Ф130μm (glue gap) | width≤2μm, lengh≤60μm |
| 4 | end face of ceramic( Ф130μm~ Ф250μm) | width≤10μm
qty≤5pcs. | Diam≤10μm
qty≤5pcs. | Diam≤10μm
qty≤5pcs. | not allowed |
Environmental Specifications
| Items | Requirements | Standards |
| Repeatability | Pull and Push 10 times | I1 range03dB, R1 range≤5dB
No mechanical damage, as deformation cracking or relaxing and so on |
| High temp | +85C, 96h | I1 range_0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
| Low temp | _40'C, 96h | I1 range_0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
| Temp. cycle | -40C~+85C, 21Cycles, Total
168 h | I1 range_0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
| Damp and Hot | +75C, 95%, 96h | I1 range-0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
Water
Immersion | 25±2℃, 168h, Tap water | I1 ranges0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and soon |
| Repeatability | 5 times | I1 range_0.3dB, R1 range≤5dB
No mechanical damage, obvious scratch |
Vibrate
(Sine) | Frequency: 10-50Hz
Scanning: 45times/min
Amplitude: 0.75mm Half
Time: three directions, 2h each | I1 range<0.3dB, R1 range≤5dB
No mechanical damage, obvious scratch |
| Drop | Height: about 1.5m,
Times: 8 | I1 range<0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
Mechanical
Durable | Pull and Push: 500 times | I1 range_0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
| Tension | Cable: 20N, online;
Cable: 30N, offline, 2mins | I1 range.0.3dB, R1 range≤5dB
No mechanical damage. as deformation cracking or relaxing and so on |
Torsion
( Cable) | Load: 15N
Rate: 10 times/min
Times: 25 | I1 range=0.3dB, R1 range≤5dB
No mechanical damage, as deformation cracking or relaxing and so on |
Installation introduction
Assembly of the connector requires only normal fiber preparation
tools: a fiber stripping tool, wipes and a fiber cleaver. They
don’t need to polishing, no epoxy, No electrical power supply, no
fused the fiber. Just Strip the buffer, cleave and clean the fiber
and then insert the fiber into the Fast Connector. Installation
takes just minutes and couldn't be easier.
Related Tools:
1. FTTH Drop cable stripper, To strip the Bow type 2x3mm Drop cable
2. 0.9mm/2.0mm/3.0mm Fiber Cable Stripper. To Strip those round
cable and bare fiber of 2x3mm Drop cable
3. Fiber cleaver to cut the fiber of Cable&Fiber
4. Use the Length guard board cut the fiber in requested length,.
5. Alcohol For Fiber Clean after cut
6. Cleanroom Wipes, for Fiber Clean after Alcohol Cleaned
Feature
• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and
consideration
• Uses proven, Ceramic V-groove technologies

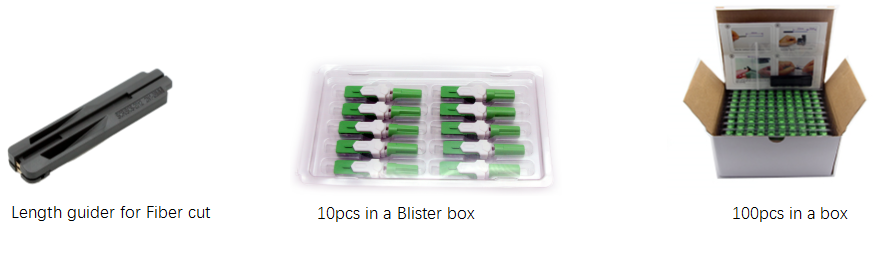

Package
Application
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• HDTV cabling
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks
• Repair and replacement Fiber Connection requirements in FTTH
project
• Fiber optic equipment
