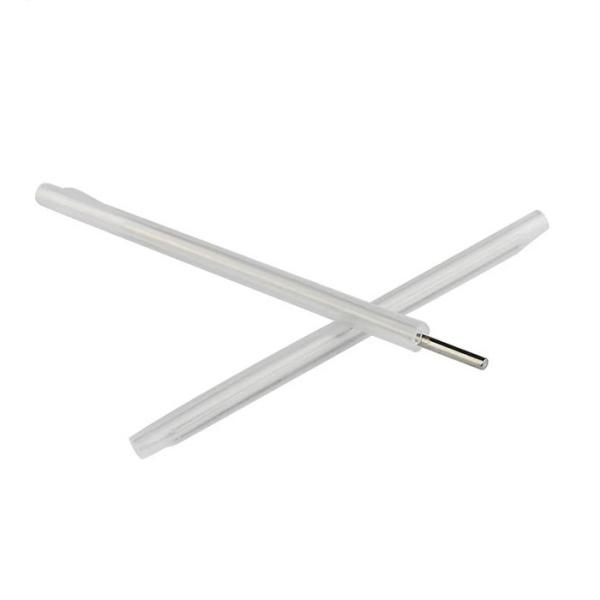

60mm Heat Shrink Splice Protector FTTH Products Fiber Fusion Splice
Protection Sleeve
FTTH 60mm Heat Shrink Splice Protector Fiber Fusion Splice
Protection Sleeve
Special designed cross-linked Clear Heat Shrinkable tubing, with
Clear fusion tubing liner, providing strength member and protection
to fiber optical splices. Consist of a rod of stainless steel, hot
fusion tubing and cross-linked polyolefin. To rebuild the coating
of fiber, providing mechanical strength at the fusion joint area
and keeping optical transmission properties.
Features
Single holed (preshrunk) ends eliminates improper fiber threading
Smooth stainless steel reinforcing member ends decrease the risk of
fiber damage during installation
Extended liner length prevents contact between the fiber and the
backbone
Clear sleeve design persign permits easy centering of splice before
heating
Sealing structure makes the splice free from effect of temperature
and humidity from environment
RoHS & REACH Compliant.
Outer tube meets SAE AMS-DTL-23053/5 Class
Operating temperature range
Operating temperature:-45℃~100℃/-45℃~135℃
Minimum shrink temperature: 80℃
Minimum fully recovery temperature:120℃
| Part Number | O.D. after Recovery (mm) | Length (mm) | Fusion tube(D) | Steel rod(D) | Package (pcs/bag) |
| | | I.D. (mm) | Length (mm) | O.D. (mm) | Length (mm) | |
| Colorful Sleeve |
| FOSP-60AM (red) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 56 | 100 |
| FOSP-60AM (purple) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 55 | 100 |
| FOSP-60AM(orange) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 56 | 100 |
| FOSP-60AM(green) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 56 | 100 |
| FOSP-60AM(yellow) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 56 | 100 |
| FOSP-60AM(blue) | 2.5±0.1 | 60 | 1.3 | 60 | 1.1 | 56 | 100 |
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
