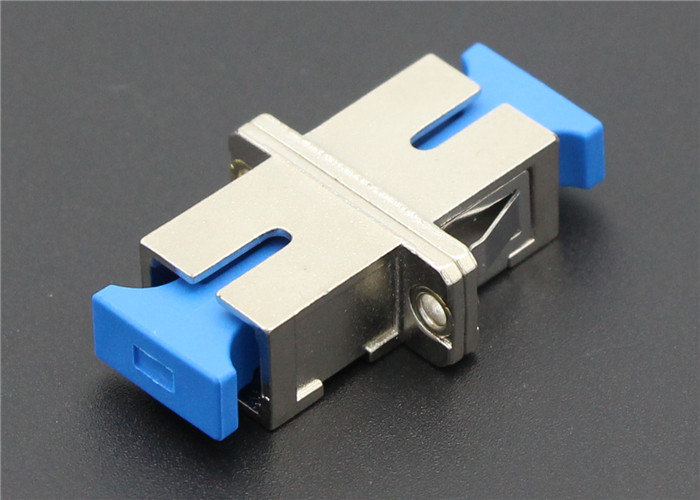

SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap

    Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers

    Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers
    • Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers
    • Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers
    • Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers
    • Buy cheap SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap from wholesalers

    SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap

    Ask Lasest Price
    Brand Name : OMC or OEM
    Model Number : SC UPC SM Simplex Metal
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000 pcs per month
    Delivery Time : 3 days after payment confirmed
    Certification : ISO9001:2008,ROHS
    • Product Details
    • Company Profile

    SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap

    SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap


    SC Simplex Metal adapter are developed to couple and mate two SC connector plugs.

    Our range of high-quality SC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. A protective cap is provided at each end of the adapter with the same color as the adapter


    OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.


    Features:


    Complies with IEC 61754-4 standard

    Available in Flanged and Flangeless options

    Push-pull locking mechanism for easy installation

    Precision connection with sleeve

    SM and MM connector can be used interchangeably

    Low insertion loss, High Return loss

    Good interchangeability and reliability

    Meet IEC and ROHS standards

    High precision of mechanical dimensions Accuracy


    Specifications


    Test item(SM-9/125) UPC(SM-9/125) APCMM PC
    Insertion Loss≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
    Return Loss≥50 dB≥60 dB≥35 dB
    Durability (1000 Mating)0.1dB Max.
    Withdrawal force(g/f)2.0N ~ 5.9N (200gf ~ 600gf)
    Storage Temp(℃)-40~+85

    Material


    Parts nameMaterialColor
    Housing bodyPC/PEIBlue, Green
    SleeveHigh precision Ceramic sleeveWhite
    Inside hookPBT/PEIBlue, Green
    Metal PlateStainless steel-
    Outer shutterPC/PEI+ Stainless steel springBlue, Green
    Dust CoverABSWhite

    Environment and Mechanical


    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidity cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC≤0.2dB


    Application:


    1. Patch panels, ODF and other optical connections.

    2. Optical networks demarcation and monitoring point


    Drawing:



    Packaging & Shipping

    Several piece in one plastic box,
    Several boxes then packed in a 54*39*35 carton paper box

    Other size carton is available too.


    SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap


    Company Information:


    OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



    SC SM UPC Simplex Metal Fiber Optic Adapter With Flange Blue Color Dust Cap



    FAQ:


    1. Are you the real factory?

    Yes,we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable
