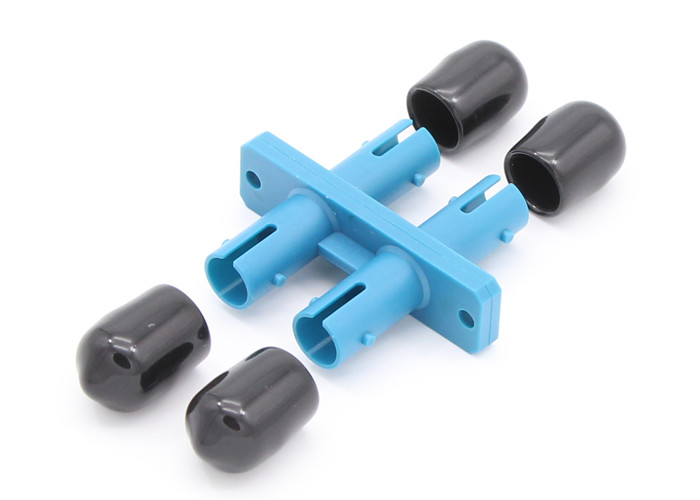

ST UPC to ST UPC SM Duplex Fiber Optic Adapter With Plastic Body
Low Insertion Loss 0.2dB
Our ST adaptors have high precision alignment sleeves for
reliability and better reconnectability. ST adaptors come with a
ceramic sleeve for the singlemode adaptor and multimode adaptor.
The simplex housing is available in double D footprint type.
Optical Adaptor are developed to couple and mate two identical or
two different (hybrid) connector plugs. The housing of the Adaptors
of the last generation has a reference key for the right position
coupling and zirconia or phosphorus bronze split sleeve for high
alignment.
OMC could supply standard types of Adaptors, such as FC, SC, LC,
ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.
OMC Adaptors design, material and manufacturing process assure long
life and high repeatability of optical performances even for
different brand connectors mating.
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. |
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) |
| Storage Temp(℃) | -40～+85 |
Material
| Parts name | Material | Color |
| Housing body | PC/PEI | Blue, Green |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT/PEI | Blue, Green |
| Metal Plate | Stainless steel | - |
| Outer shutter | PC/PEI+ Stainless steel spring | Blue, Green |
| Dust Cover | ABS | White |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
Application:
- Patch panels, ODF and other optical connections.
- Optical networks demarcation and monitoring point
Packaging & Shipping
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
