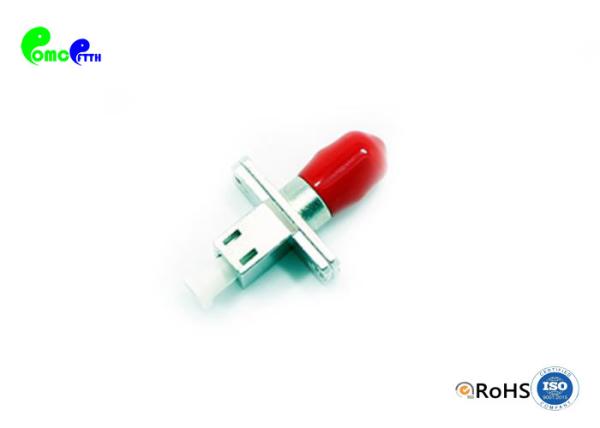

LC Female - ST Female Metal Simplex Hybrid Fiber Optic Adapter Low
Insertion Loss 0.2 dB
Female to Female hybrid Adaptor
Hybrid adaptors are used for mating 2 different styles of
connector. Our hybrid adaptors conform to international standards,
are quality tested, and are available in singlemode, multimode and
many different connector-type configurations.
Optical Adaptor are developed to couple and mate two identical or
two different (hybrid) connector plugs. The housing of the Adaptors
of the last generation has a reference key for the right position
coupling and zirconia or phosphorus bronze split sleeve for high
alignment.
OMC could supply standard types of Adaptors, such as SC-FC, SC-ST,
FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.
OMC Adaptors design, material and manufacturing process assure long
life and high repeatability of optical performances even for
different brand connectors mating.
Spec Performance:
| Connector Type | LC/SC/FC/ST/LSH | Gender Type | Female to Female |
| Fiber Counts | Simplex/Duplex | Material | Plastic/Metal |
| Fiber Mode | Singlemode/Multimode | Polish Type | UPC/APC |
| Insertion Loss | ≤0.2dB | Durability | ≥1000 Times |
Material
| Parts name | Material | Color |
| Housing body | PC/PEI | Blue, Green |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT/PEI | Blue, Green |
| Metal Plate | Stainless steel | - |
| Outer shutter | PC/PEI+ Stainless steel spring | Blue, Green |
| Dust Cover | ABS | White |
Application:
1. Patch panels, ODF and other optical connections.
2. Optical networks demarcation and monitoring point
Packaging & Shipping
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
