Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32

    Buy cheap Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32 from wholesalers

    Buy cheap Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32 from wholesalers
    • Buy cheap Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32 from wholesalers
    • Buy cheap Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32 from wholesalers

    Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32

    Ask Lasest Price
    Brand Name : OMC or OEM
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000 pcs per month
    Delivery Time : 1 week
    Certification : ROHS and ISO
    Model Number : Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32
    • Product Details
    • Company Profile

    Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32

    Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32

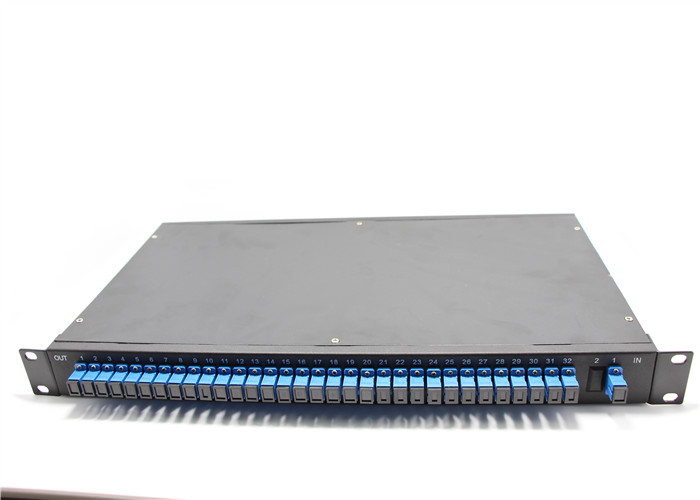

    Rack Mount PLC Splitter


    Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

    With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.


    The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution. 1×16 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.


    OMC ‘s bare fiber PLC splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.


    Specification (with no connector)


    ParameterUnitSpecification (P Grade)
    Operation Wavelengthnm1260~1650
    Channel Number 1X21x31X41x61X81x121X161x241X321X641x128
    Insertion Loss(Max)dB4.36.27.29.810.512.513.616.517.221.025.5
    Uniformity (Max.)dB0.50.60. 60.81.01.01.41.51.62.02.5
    Polarization Dependent LossdB0.20.30.30.30.30.30.30.30.30.50.8
    Return LossdB≥55
    DirectivitydB≥55

    ParameterUnitSpecification (P Grade)
    Operation Wavelengthnm1260~1650
    Channel Number 2X22X42X82X162X322X642x128
    Insertion Loss (Max.)dB4.57.511.214.617.521.525.8
    Uniformity (Max.)dB0.81.01.21.51.82.53.0
    Polarization Dependent LossdB0.20.30.30.30.30.51.0
    Return LossdB≥55/50
    DirectivitydB≥55

    Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.


    Environmental Conditions:


    Operating Temperature-40~+85
    Storage Temperature-40~+85
    Operating Humidity%RH≤93
    Storage Humidity%RH≤93

    Package Dimension (mm)


    A140x4x4 steel tubeA1255x7x4 steel tube
    A245x4x4 steel tubeD90x20x9.5 Plastic box
    A345x4.5x4 steel tubeE100x80x10 Plastic box
    A450x7x4 steel tubeF141x115x18 Plastic box
    A560x7x4 steel tubeK120x80x18 Plastic box
    A660x12x4 steel tubeU1/2/3/4 U 19’ rack
    A765x7x4 steel tubeG1/2/3/4 G LGX’ Aluminum rack
    A880x12x4 steel tubeC4/8/16/32/64 CH Cassette
    A980x20x6 steel tubeT4/8/16/32/64 CH Pallet
    A1090x20x6 steel tubeRSplice Tray (customized dimension)
    A1180x20x6 steel tubeXCustom Specifies

    Packaging Information


    Product Type1×22×21×31×42×41×61×8
    (127)
    1×8
    (250)
    2×8
    Ribbon FiberA1/A1A3/A1A3
    Ф0.9 steel tubeA3A5
    Ф0.9 plastic caseDE
    Ф2.0 plastic caseDE
    Ф3.0 plastic caseDE
    Rack Mount1U/2U/3U/4U
    Product Type1×121×162×161×241×322×321×642×64
    Ribbon FiberA3A5A4A7A6
    Ф0.9 steel tubeA6A8A9A10A11
    Ф0.9 plastic caseKF
    Ф2.0 plastic caseKF
    Ф3.0 plastic caseK/
    Rack Mount1U/2U/3U/4U

    Package Drawing (mm)





    Company Information:


    OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



    Optical Fiber PLC Splitter Rack Mounted SC UPC Blue Color Connector 9 / 125μm 1310nm 1x32



    FAQ:


    1. Are you the real factory?

    Yes,we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable
