Discription:
Planar lightwave circuit (PLC) splitter is an optical power
distribution device based on the integrated waveguide of quartz
plate. With the features of small size, wide range of operating
wavelength, stable reliability and good uniformity, It’s widely
used in PON,ODN,FTTX point to connect between termination device
and central office to achieve the signal splitter.

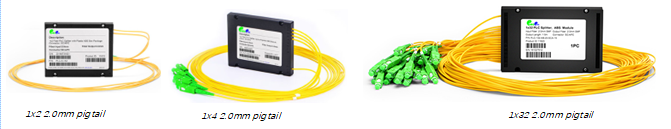

OMC ‘s ABS Cassette PLC Splitter family has 1x2, 1x4, 1x8, 1x16,
1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with
specifications that are tailored for different applications and
markets. Wide bandwidth, compact size. All products meets, ROHS,
GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification:
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 | 17.4/17.7 | 20.6/21.3 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 | 17.1/17.4 | 20.3/21.0 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Environmental Conditions:
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
Cable Infor:
| Fiber type | G657A1 |
| Pigtail cable | 900um /1.6mm/1.8mm/2.0mm |
| Connector | SC, LC,FC,ST,……. |
| 2xN Splitter | Only Single Chip |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 100×80×10 | 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 100×80×10
| 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
The bare PLC splitter can allow a single GPON network interface to
be shared among many subscribers and allow service providers to
enable bandwidth-intensive applications. The following figure shows
1X8 bare PLC fiber splitter interconnected with GPON OLT and ONT
through fiber optic splice closure.
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses.
