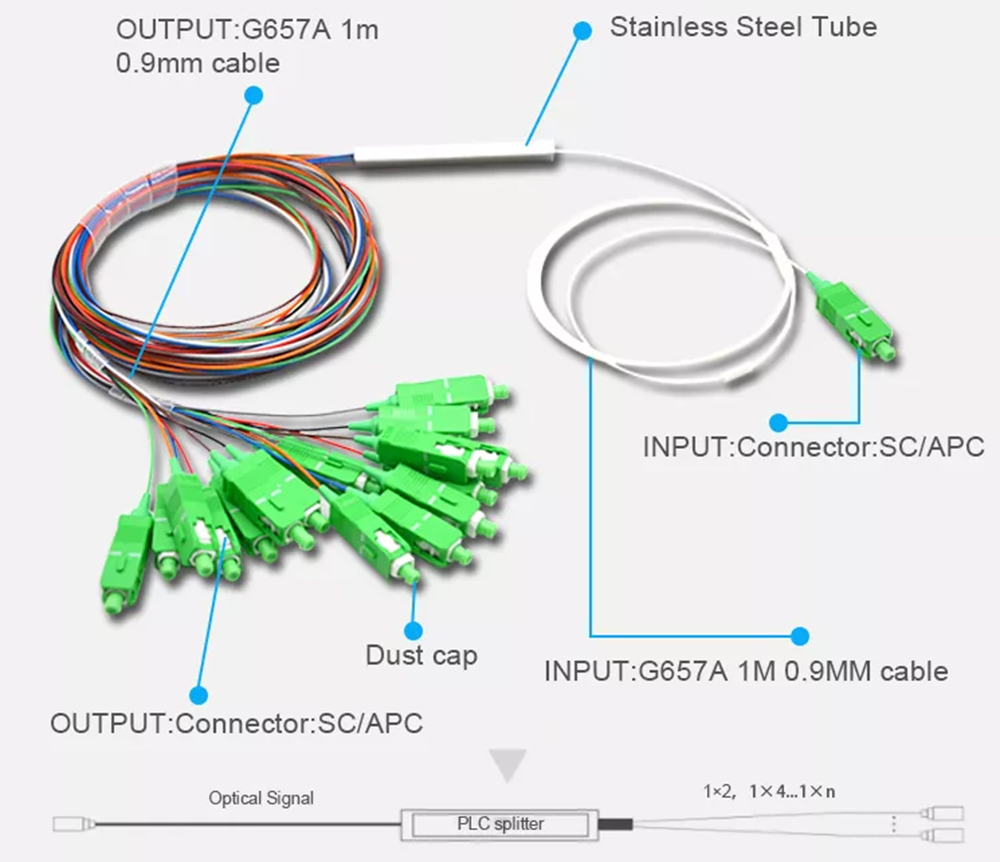

Fiber Optic PLC Splitter 1x8 Blockless With SC APC 9 / 125μm
Connector
PLC splitter is an optical power distribution device based on the
integrated waveguide of quartz plate. With the features of small
size, wide range of operating wavelength, stable reliability and
good uniformity, It’s widely used in PON,ODN,FTTX point to connect
between termination device and central office to achieve the signal
splitter.
OMC ‘s Blockless PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16,
2x32,2 x 64 PLC splitter, with specifications that are tailored for
different applications and markets. Wide bandwidth, compact size.
All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
1x8 Blockless PLC Splitter in FTTH Solution
Blockless PLC splitter can integrate multiple functions onto a
single chip to significantly reduce size and cost. It is widely
used in PON networks to realize optical signal power management.
The following figure shows 1X8 blockless PLC fiber splitter
interconnected with GPON OLT and ONT through fiber optic splice
closure.
Specification
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
Product Highlights
Blockless PLC Splitter
1.1X16 PLC splitter, uniform distribution of optical signal
2.Small size, with the splitter type of mini module, LC/APC
connector
3.Ideal for EPON, GPON, FTTH/FTTX network
Simple and Easy Connection
Blockless PLC splitter can be easily installed in fiber splice
closure, optical distribution box for space saving and no need to
splice.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used
to distribute or combine optical signals, which gives carriers the
ability to split optical signals to multiple homes or businesses.
