    IP65 12F Fiber Distribution Box Terminal Closure Wall Mounted Pole Mounted Fiber Joint Box Splicing Closure

    Ask Lasest Price
    Brand Name : OMC or OEM
    Model Number : FDB-12D Fiber Distribution Box
    Certification : ROHS and ISO
    Price : USD5-15
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 1000000pcs per month
    Delivery Time : 3-7 workdays
    • Product Details
    • Company Profile

    IP65 12F Fiber Distribution Box Terminal Closure Wall Mounted Pole Mounted Fiber Joint Box Splicing Closure

    IP65 12F Fiber Distribution Box Terminal Closure Wall Mounted Pole Mounted Fiber Joint Box Splicing Closure


    IP65 FTTH Box 12F Wall Mounted /Pole mounted Fiber Optic Distribution Box Terminal Closure 12F Caixa CTO Box

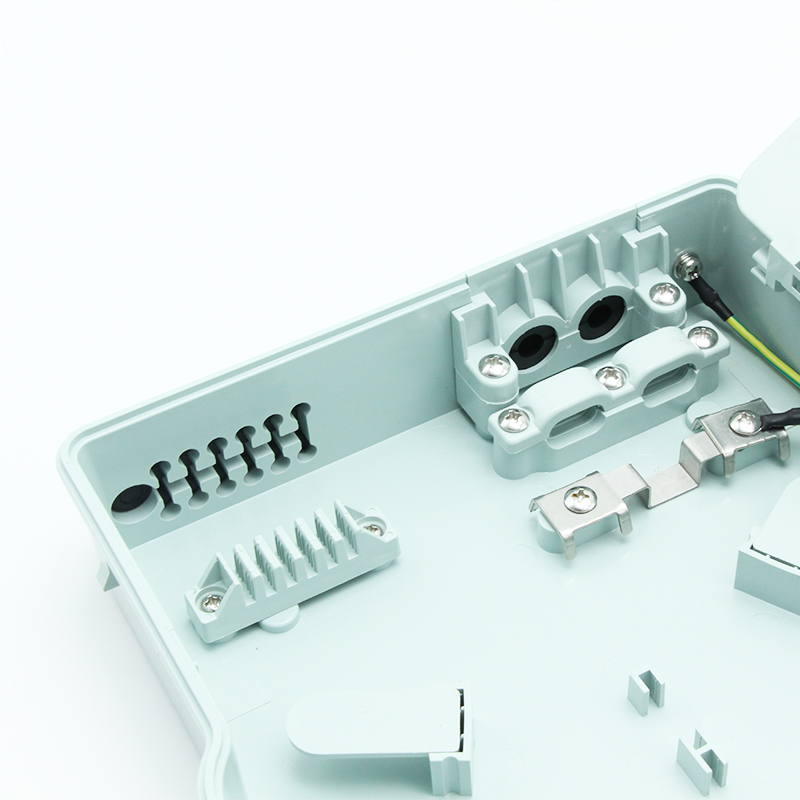

    This Lockable IP66 distribution box is supplied loaded or unloaded and offers the ability to terminate 12 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications. This terminal box terminates up to 12 fiber optic cables, offers spaces for splitters and up to 12 fusions, allocates 12 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTX networks. Accommodates splitters and up to 12 SC simplex adapters ,Max allowance for entry cables: max diameter 15mm, up to 1 cables, Max allowance for exit cables: Up to 12 simplex cables


    Application

    Widely used in FTTH access network.

    Telecommunication Networks

    CATV Networks

    Data communications Networks

    Local Area Networks


    Features

    IP66 Rating for external use

    Lockable door for added security

    Integrated cable tie points for securing incoming cable

    Up to 12 splice & SC connection points

    Removable splice tray for easy installation

    Accepts loose tube, distribution and pre-terminated cables

    Integrated bend radius protection

    Sealing glands for up to 12 exiting cables + 2 x 6.5mm- 13mm incoming cable

    Removable door for ease of installation

    Supplied with 12 heat shrink splice protectors

    Supplied with transit tubing

    Supplied with wall fixings and tie wraps

    ROHS, REACH & SvHC compliant


    Specification

    ModelFDB-12D
    Adapter12pcs of SC /24pcs of LC
    Cable Ports2 in/12 out Drop cable ports
    Applicable cable OD7-13mm
    Box Dimensions(mm)225x220x65
    MaterialABS/ABS+PC
    Max capacity(F)12
    Installation methodWall mount and pole mount

    Operation conditions

    Temperatures: -40℃ -- 60℃

    Humidity: 93% at 40℃

    Air Pressure: 62kPa – 101kPa


    Standard Accessories

    Labeling paper, abrasive paper, self-adhesive positioning block, heat-shrink protective sleeves, nylon tie,insulation tape, fixing screws.


    FAQ:


    1. Are you the real factory?

    Yes, we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable.
