Pole Mounted 16F IP65 Fiber Distribution Box Load 1x16 PLC Splitter

16F IP65 Fiber Distribution Box load 1x16 PLC Splitter , Pigtail and adapter , PC + ABS material wall mounted for FTTx

Fiber Distribution box (FDB), known as optical Distribution box (ODB) as well, is a compact fiber management product of small size. It is widely adopted in FTTx cabling for both fiber cabling , provides the connection between fiber optic cables and passive optical splitters.

Fiber Distribution box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable Distribution box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber Distribution box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.

OMC’s FDB Family

OMC mainly offer The wall mount fiber Distribution boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.

Specification:

Fiber Distribution Box: FDB-16C-1

Standard Accessories: Installation nuts, Splice sleeves,Metal key,Wall mount accessories, 1 set
Optional Accessories: Pole mounted rings x 2pcs

Fiber Distribution Box: FDB-16C-2

Standard Accessories: Installation nuts, Splice sleeves,Metal key,Wall mount accessories, 1 set
Optional Accessories: Pole mounted rings x 2pcs

Fiber Distribution Box: FDB-16C-3

Standard Accessories: Installation nuts, Splice sleeves,Metal key,Wall mount accessories, 1 set
Optional Accessories: Pole mounted rings x 2pcs

Mounting Size for reference

Feature:

Water-proof design with IP-66 Protection level
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1x2/1x4/1x8/1x16 Splitter Can be installed as an option.
Efficient cable management.
Entrance cable OD:6-12mm
Distribution cable of 16 ports for 2-4mm drop cable.
Wall Mount and Pole mount Install

Working Environmental conditions:

1. Working temperature:-40°C+60°C；
2. Relative humidity: ≤93%(at +40°C)；
3. Atmospheric pressure:62kpa~101kpa(Approximate elevation 0～5000m)；
4. Insert Loss:≤0.35dB；
5. Return Loss:≥50 dB；
6. Plug durability:>1000 times；
7. Insulation resistance:≥1000MΩ/500v(DC)；
8 Grounding resistance : >3000V (DC)/1min without breakdown, flashover

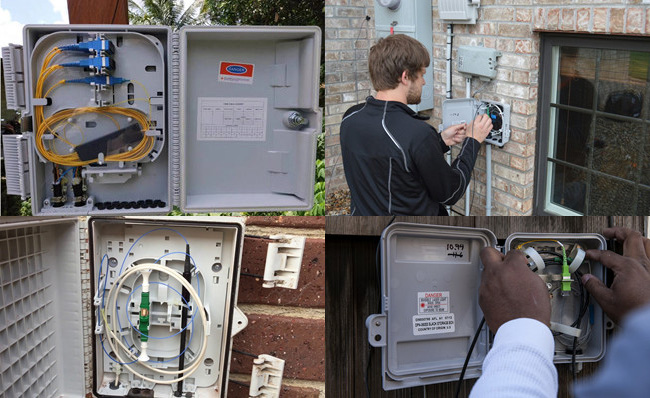

Fiber Distribution Box Application

FDB series are applicable in FTTH project and suitable for outdoor application. They can distribute cables with a splitter.They have the subsequent functions of mechanical splice, fusion splice, distributions, etc.
