Lightweight Fiber Terminal Box 8 Cores Wall Mount Installation

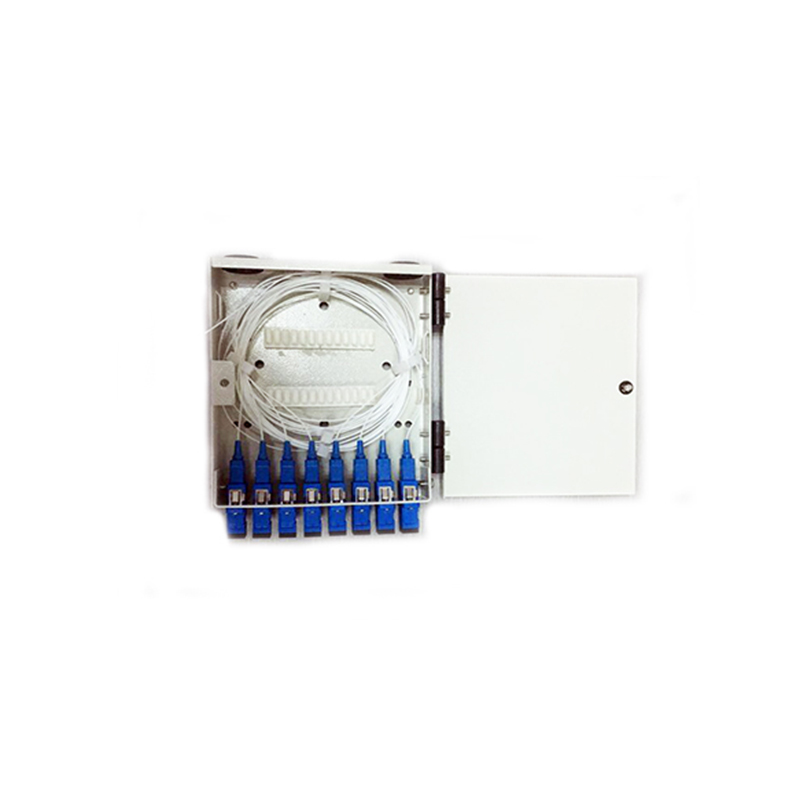

8 Cores Wall mount Fiber Terminal Box- FTBM108B
The 8 cores FTB product is designed for small capacity
communication system, Wall mounted installation.
The FTB is composed of two parts, one links with optical cables for
fusion connection between cable and pigtail.
Other links with patch cord.
Features:
small size, light weight, pleasing in appearance
wall mounted with mechanical protection function
Provide fusion and storage application for optical cables
Reliable protection appliance of fixing, stripping and earthing for
optical cables.
Whole range protected design for fiber lay to ensure the bending
radius>40mm
Provide various accessories to avoid any unexpected damage to the
fiber
Specification
| Part NO | Dimension(mm) | Cable OD | Inlet ports | Max Splice &Connection capacity | Remark |
| FTBM108B | 200x148x30 | 5-10mm | 2 | 8 | Cold rolled steel sheet, electrostatic spraying. Provide 8
adapters, available for FC, ST, SC, and LC. Fit for wall mounting. |
Application:
- FTTH Cabling point’s light split function
- Floor‘s fiber distribution in buildin
