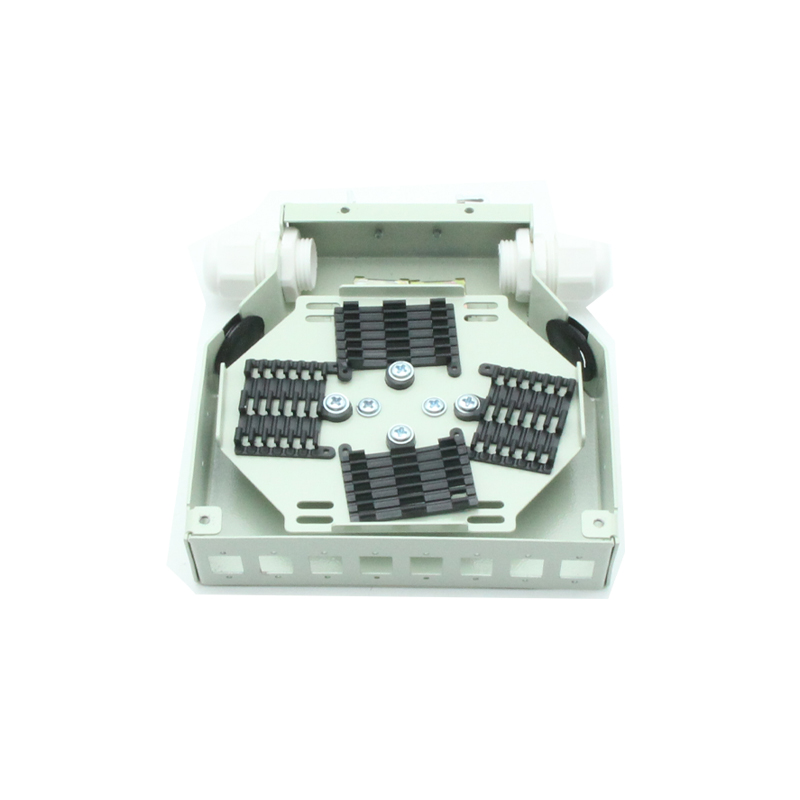

8 Ports SC LC Din Rail Splice Fiber Terminal Box With Grey Metal
8 ports SC / LC Din Rail Splice Box Grey metal for Fiber Terminal
application
Din Rail Splice box is metal box special designed to be snapped on
din rail, It’s used for the distribution and terminal
connection for various kinds of optical fiber system, especially
suitable for mini-network terminal distribution, in which
the optical cables, patch cores or pigtails are connected. This
compact enclosure makes it possible to direct terminations
or fusion splices in much smaller protected areas.
Our DIN Rail Splice Box can make 4 cores,8ports,12cores,24cores,and 48ports with different adapter Plate ,such as
ST
Simplex Adapter Plate, LC Duplex Adapter Plate, LC Quad Adapter
Plate, SC Simplex Adapter Plate, SC Duplex Adapter
Plate ,FC Simplex Adapter Plate.
Features
small size, light weight, pleasing in appearance
wall mounted with mechanical protection function
Provide fusion and storage application for optical cables
Reliable protection appliance of fixing, stripping and earthing for
optical cables.
Whole range protected design for fiber lay to ensure the bending
radius>40mm
Provide various accessories to avoid any unexpected damage to the
fiber
Specification
| Part No. | Dimension(mm) | Material | Max capacity cores | Fiber Ports |
| DRCB-xxxx | 130 x 129 x 36(1U) | Cold-roll steel,
electrostatic painting | 24 | FC, SC, ST, LC … |
Products Detail
- 2/4pcs cable entry/exit ports; 12-48pcs pigtail entry/exit ports
- 2.Max. 24pcs adapters can be loaded
- Integrated splice holders (fusion splices)
- Rear or aside DIN rail fixation fixture
- 2/4rear entries (PG 11 or PG 13.5 cable gland)
- Grey color (RAL 7035) Or Black
- OEM Service is available.
Application:
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for Din Rail mounted applications
- Used in FTTH, Telecommunications, CATV etc.
