FHO5000 FTTH Fiber Optic Tools OTDR Manual Optical Time Domain
Reflectometer
High quality of FHO5000 OTDR Manual Optical Time Domain
Reflectometer FTTH with good price
FHO5000 series Optical Time Domain Reflectometer (OTDR) is an
intelligent meter of a new generation for the detection of fiber
communications systems. With the popularization of optical network
construction in cities and countryside, the measurement of optical
network becomes short and disperse; FHO5000 is specially designed
for that kind of application. It’s economic, having outstanding
performance.
FHO5000 is manufactured with patience and carefulness, following
the national standards to combine the rich experience and modern
technology, subject to stringent mechanical, electronic and optical
testing and quality assurance; in the other way, the new design
makes FHO5000 more smart and compact and multi-purpose.
Whether you want to detect link layer in the construction and
installation of optical network or proceed efficient maintenance
and trouble shooting, FHO5000 can be your best assistant.
Features
Integrated design, smart and rugged
IP65 protection level, outdoor enhanced
7-inch anti-reflection LCD screen
PON online test module (1625nm) is optional
MMF test module (850/1300nm) is optional
Support multi-language display and input
Application
FTTX test with PON networks
CATV network testing
Access network testing
LAN network testing
Metro network testing
Lab and Factory testing
Live fiber troubleshooting
Product Details
Ready for all kinds of environment.
FHO5000 series OTDR is specially designed for tough outdoor jobs.
IP65 protection level, lightweight, easy operation, low-reflection
LCD and more than 12 hours working period make it perfect in field
testing. Meanwhile, optional PCB board with water-proof coating
helps FHO5000 series OTDR get better protection performance.
What you need is all-in-one!
FHO5000 series OTDR is a highly integrated platform that features
with four module slots, with a large 7-inch color screen (with a
touchscreen option), a high-capacity Lithium-Ion battery, an
optional microscope (through universal serial bus [USB] port), and
built-in optical test functions, such as PON test module, visual
fault locator (VFL), optional power meter and laser source, making
it qualified in the installation, turn-up, and maintenance of
FTTx/Access optical networks
Main functions
Multi-mode OTDR
Besides standard single mode (1310/1550nm), FHO5000 series OTDR
supports multi-mode (850/1300m) test mode for option to analyze
multi-mode fiber network.
VFL (visual fault locator)
The VFL, available as a standard module in FHO5000 series OTDR,
offers built-in 650nm visual fault location on a FC/UPC connector.
PON ONLINE TEST
FHO5000 series OTDR uses 1625nm wavelength to scan and analyze the
access point and proceed online testing with optical filter, and
will not disturb the service.
PM (power meter)
FHO5000 series OTDR comes with optional built-in power meter that
let technicians easily verify the presence of a signal.
LS (laser source)
FHO5000 series OTDR comes with optional built-in laser source
through OTDR1 Port that let technicians easily verify the total
loss of the local network with a power meter.
FM (fiber microscope)
The optional fiber inspection probe facilitates the inspection
before the connection. FHO5000 series OTDR offers this capability
through a USB port connection, which allows quick and easy
inspection of connector end faces for contamination and also
enables it capture and store the image.
Humanized Test Interface
FHO5000 series OTDR could display Splice loss, Connector loss,
Fiber attenuation, Reflection of points, Link optical return loss
and distance to fiber events etc. With test information in a smart
way, user could get detailed information immediately.
Quick fit in short time
Simplified display style and structured menus help effective in
reducing the time of study.

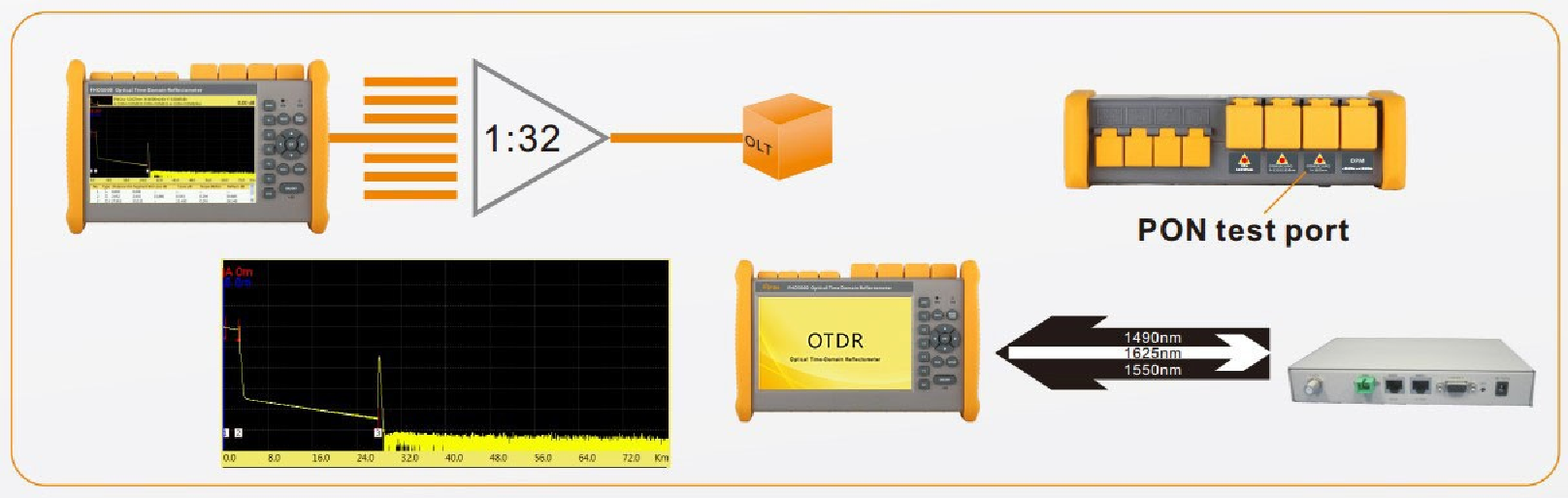

FTTH test within PON networks
FHO5000 series OTDR’s models, like T40F and T43F, are dedicated to
the testing of PON network maintenance and troubleshooting without
service disruption.
Last mile master
FHO5000 series OTDR could easily test through 1*32 PLC splitter in
PON test (Model: FHO5000-T43F)
Fiber Microscope
Microscope is optional for FHO5000 series OTDR. 400X amplification
and variety of accessories ensure perfect terminal condition before
test.
The essential first step
Taking time to properly inspect connector end faces can prevent a
slew of problems down the lines, saving you time, money and
headaches.
Result transfer
Check test results on PC or PDA through USB; 4GB large internal
memory space could store more than 40,000 groups of results.
Link in line
· Download reference traces and settings from database
· Send measurement results via email
· Ask for remote help
Data Manager
Use Data Manager to elaborate and print out result files on upper
computer within a few steps.
High Compatibility
Support
- Windows Vista (32/64 bit system)
- Windows 7 (32/64 bit system)
- Windows 8 (32/64 bit system)
- Microsoft Office Excel 2007
- Microsoft Office Excel 2010
- Microsoft Office Excel 2013
Specification -General
| Dimension | 253×168×73.6mm 1.5kg (battery included) |
| Display | 7 inch TFT-LCD with LED backlight (touch screen function is
optional) |
| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours①, Telcordia GR-196-CORE Charging time: <4 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | User selectable (English, Simplified Chinese, traditional Chinese,
French, Korean, Russian, Spanish and Portuguese-contact us for
availability of others) |
| Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95%
(non-condensation) Storage temperature and humidity: -20℃~+75℃,
≤95% (non-condensation) Proof: IP65 (IEC60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter,
USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
Technical parameter
| Type② | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB)③ | Event/Attenuation Dead-zone (m)④ |
| FHO5000-M21 | 850/1300 | 19/21 | 1.5/8 |
| FHO5000-MD21 | 850/1300/1310/1550 | 19/21/35/33 | 1.5/8/1.5/8 |
| FHO5000-MD22 | 850/1300/1310/1550 | 19/21/40/38 | 1.5/8/1.75/11 |
| FHO5000-D26 | 1310/1550 | 26/24 | 1.5/8 |
| FHO5000-D35 | 1310/1550 | 35/33 | 1.5/8 |
| FHO5000-D40 | 1310/1550 | 40/38 | 1.75/11 |
| FHO5000-D43 | 1310/1550 | 43/41 | 2/14 |
| FHO5000-D45 | 1310/1550 | 45/43 | 2/14 |
| FHO5000-T40F | 1310/1550/1625 | 40/38/38 | 1.75/11 |
| FHO5000-T43F | 1310/1550/1625 | 43/41/41 | 2/14 |
| FHO5000-T45F | 1310/1550/1625 | 45/43/43 | 2/14 |
Test parameter
Pulse Width | Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs,
2μs, 5μs, 10μs, 20μs Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs,
2μs |
Testing Distance | Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km,
160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km |
| Sampling Resolution | Minimum 5cm |
| Sampling Point | Maximum 128,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR
uncertainty) |
| Reflectance Accuracy | Single mode: ±2dB, multi-mode: ±4dB |
| IOR Setting | 1.4000~1.7000, 0.0001 step |
| Units | Km, miles, feet |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up |
| Testing Modes | Visual fault locator: Visible red light for fiber identification
and troubleshooting Light source: Stabilized Light Source (CW,
270Hz, 1kHz, 2kHz output) Field microscope probe |
| Fiber Event Analysis | -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB
steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps) |
| Other Functions | Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical
fiber Trace overlay and comparison |
