    Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine

    Ask Lasest Price
    Brand Name : OMCFTTH or OEM
    Model Number : OMCFS-118 Handheld Fiber fusion Splicer
    Price : Negotiable
    Payment Terms : T/T, Western Union,paypal,alipay,credit card, MoneyGram, L/C
    Supply Ability : 10000 pcs per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine

    FTTH High Precision Fusion Splicer With ENGLISH, RUSSIAN,SPANISH,PORTUGUESE,ITALIAN,FRENCH,GERMAN language software


    OMCFS-118 is a special design for the installation, operation and maintenance of optical fiber Splice purpose. It’s a high precision, durable, convenient optical instrument. Widely used in the construction, inspection, maintenance of FTTX project.


    Specifications

    ModelOMCFS-118 Fusion Splicer
    Splicing TypeSM, MM, DS, NZDS,BIF,PMF
    Splicing Loss0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
    Return Loss>60dB
    Splicing ModeManual, Half Auto, Auto
    Fiber AlignmentCore to Core Alignment by PAS technology
    Applicable FiberCable indoor and 0.25mm,0.9mm fiber, SC connector(option)
    Splicing Time≤9s
    Heat Time≤30s
    Cleaved Length8~16mm
    Fiber Image/ Magnification300/200
    View Display5 inch digital high-quality LCD screen
    Tension TestStandard 2N (option)
    Heat Shrinkable Sleeve60mm, 40mm and serials heat Shrinkable Sleeve

    Battery Capacity

    200 cycles splicing and heating, 3 hours charging time

    ( splicing and charging at same time)

    Battery LifeCycling charge 300-500 times, easy to replace battery
    Electrodes Life3000, easy to replace electrodes
    Power Source≤20W
    InterfaceUSB Convenient data download and software update
    Construction LightingBuilt in high brightness, wide range of lights, easy to operate at night

    Power supply

    Built in lithium battery 5200mAh 11.1V; external adapter,

    input: AC100-240V, output: DC13.5V/4.5A


    Operating Condition

    0-5000m above sea level, Temperature: -10-60℃,

    Humidity:0~95%RH (No dew)

    Weight1.98 KG (including battery)
    Dimension (LxWxH)135mm(L)×158mm(W)×155mm(H)

    Available language: English, Russian,Spanish,Portuguese,Italian,French,German


    Package:

    NoNameQty
    1Fusion Splicer (OMCFS-118)1 set
    2Fiber Cleaver1 pc
    3Fiber Stripper1 pc
    4AC Adatpor1 pc
    5Li Battery1 pc
    6Charger1 pc
    7Spare Electrodes1 pair
    8Cooling Tray1 pc
    9Carrying Case1 pc

    SC FIBER FUSION-ON CONNECTOR

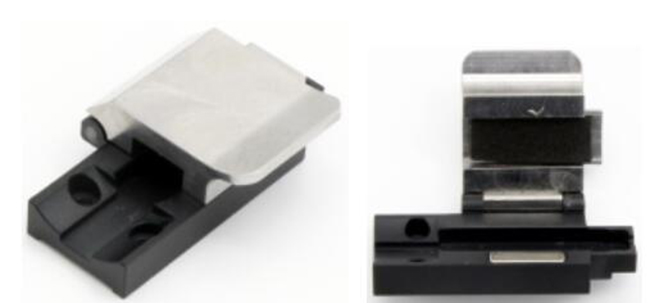

    SOC Jig to splice SC connector
