MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket

    Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers

    Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers
    • Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers
    • Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers
    • Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers
    • Buy cheap MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket from wholesalers

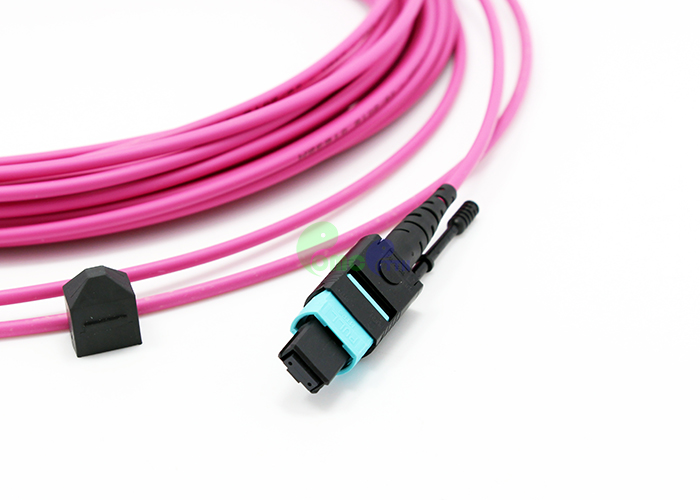

    MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket

    Ask Lasest Price
    Brand Name : Usconec
    Model Number : OM4 12F 3.0mm MTP Female 50 / 125μm
    Price : Negotiable
    Payment Terms : D/P, T/T, Western Union, L/C,Credit Card
    Supply Ability : 50000pcs per month
    Delivery Time : 3-7days
    Certification : ROHS and ISO
    • Product Details
    • Company Profile

    MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket

    MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket


    12F MTP(Female)- MTP(Female) 3.0mm LSZH Trunk cable. MTP Trunk cable is terminated with MTP connector on both ends. MTP Trunk cables connect MTP modules together as a permanent link. The Trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.


    The merits of MTP/MPO Trunk cable generally include:

    High quality—MTP/MTP Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

    Decreasing cable volume—MTP/MPO Trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

    Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.


    All of OMC’s MTP Connectors are from USconec. MTP Trunk cable is a kind of high-density cable assemblies which is generally use in three areas.

    1, The Data Center application with high dense degree environment

    2, The optical fiber to the building

    3, The internal connector application in fiber equipment.


    MTP products’ Standard:

    • Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
    • Structured cabling per TIA-568-C

    Product Specifications



    Connector AMTP Female (pinless) 12FConnector BMTP Female (pinless) 12F
    Fiber Mode5 / 125μmWavelength1300/850nm
    Polish TypePC to PCMinimum Bend Radius10mm
    Insertion Loss0.35dB Max (0.15dB Typ.)Return Loss≥25dB
    Attenuation at 1310nm≤0.32dB/kmAttenuation at 1550nm≤0.18dB/km
    Jacket OD3.0mmCable JacketLSZH/Plenum (OFNP)
    Installation Tensile Load100 NLong-Term Tensile Load50 N
    Operating Temperature-10°C to +70°CPolarityType B

    Features


    Low insertion loss, high return loss

    MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

    Economical solution for mass-termination of fiber

    Designed for low loss and standard loss SM and MM applications

    Ruggedized round cable, oval cable and bare ribbon options available

    Color coded housings available to differentiate fiber type, polish type and/or connector grade

    Good in repeatability and exchangeability


    Application:


    All of OMC’s MTP Connectors are from USCONEC. MTP Patch cable/trunk cable is a kind of high density cable assemblies
    which is generally use in three areas.
    1, The Data Center application with high dense degree environment
    2, The optical fiber to the building
    3, The internal connector application in fiber equipment.


    Cable drawing&Polarity



    High light- Push/Pull tab



    Testing Equipment



    Test Assured Program


    3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.


    Packaging


    This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
    .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
    Qty . Packing can be customized.



    Company Information:


    OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.


    dustfree wrokshop.jpg


    MTP Trunk Cable OM4 12F 3.0mm MTP Female 50 / 125μm With Push / Pull Tab Magenta LSZH Jacket


    FAQ:


    1. Are you the real factory?

    Yes,we are the real factory more than 10 years


    2. What is your main products?

    Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

    Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


    3. Do you have certificate for raw material?

    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


    4. What is your delivery time?

    Within 24 hours for normal kinds of fiber optic cable;

    3~5 days for fiber optic patch cords with 10000 connectors.


    5. MOQ: what is your minimum quantity?

    MOQ for fiber optic cables: 1KM

    There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


    6. Do you have distributor in other country or domestic?

    Until now, we sell our products to customers directly. And factory price could be offered.


    7. Payment

    For large orders: T/T, L/C

    For small orders: T/T,Western Union and Paypal are acceptable
