Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

MTP- FC Straight harness Cables are terminated with MTP and FC connector on both ends. The 12pcs(12 FC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

12F MTP - FC Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.

MTP products’ Standard:

• Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
• Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:

• FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

MTP Female -FC UPC 12F SM harness patch cord’s Specification:

Features:

• Low insertion loss, high return loss
• MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
• Economical solution for mass-termination of fiber
• Designed for low loss and standard loss SM and MM applications
• Ruggedized round cable, oval cable and bare ribbon options available
• Color coded housings available to differentiate fiber type, polish type and/or connector grade
• Good in repeatability and exchangeability

AVAILABILITY:

• 4,8,12,16,24 cores
• Fanout connector can be SC,FC,LC,ST,E2000 etd
• LC can be simplex,duplex,uniboot, unibody

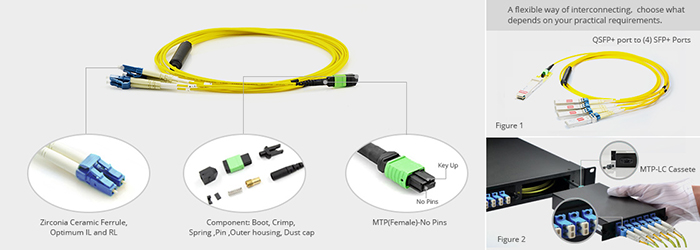

MTP Connector Types

MTP Male with Pins	MTP Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side. (Note: Female connector need to connect with male connector type.

MTP Interference index

Cable Drawing

Application:

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.

High Quality MTP Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2, 3D interferometer provides verification of MTP polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
