TF Type Fiber Adapter LC UPC Duplex SC Footprint SM Fiber Optic
Adapter With Reduced Flange Color Blue
TF Type LC Fiber Adapter are developed to couple and mate 2/4/8 LC connector plugs. Each TF
Type Fiber adapter have 4pcs stainless steel mounting clips/hooks
allowing it to be easily snapped into rectangular cut outs and fix
very well and stable.
Our range of high-quality TF Type Fiber adapters have high
precision alignment sleeves for reliability and improved reconnect
ability. For single mode and multimode applications, a ceramic
sleeve is supplied. The housing is available in different colors
with options for flange or flangeless body.
OMC Adapters design, material and manufacturing process assure long
life and high repeatability of optical performances even for dif-
ferent brand connectors mating.
Optical Specifications
| Test item | (SM-9/125) UPC |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥50 dB |
| Durability (500 Mating) | 0.1dB Max. |
| Withdrawal force (g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) |
| Storage Temp(℃) | -40～+85 |
| Color | Blue |
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM
OM2,OM3,OM4 50/125,OM5 50/125
Products Materials
| Parts name | Material | Color |
| Housing body | High quality PC(UL-94V0) | Blue, Green, Beige, Aqua, Magenta or Customized |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT/PEI | Blue, Green, Beige, Aqua, Magenta or Customized |
| Metal Plate | Stainless steel | - |
| Dust Cover | PE/ABS | White or Customized |
Products Highlights
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
The difference between Standard SC/LC adapter and TF type SC/LC
adapter
Application:
Patch panels, ODF and other optical connections. Optical networks
demarcation and monitoring point
Packaging & Shipping

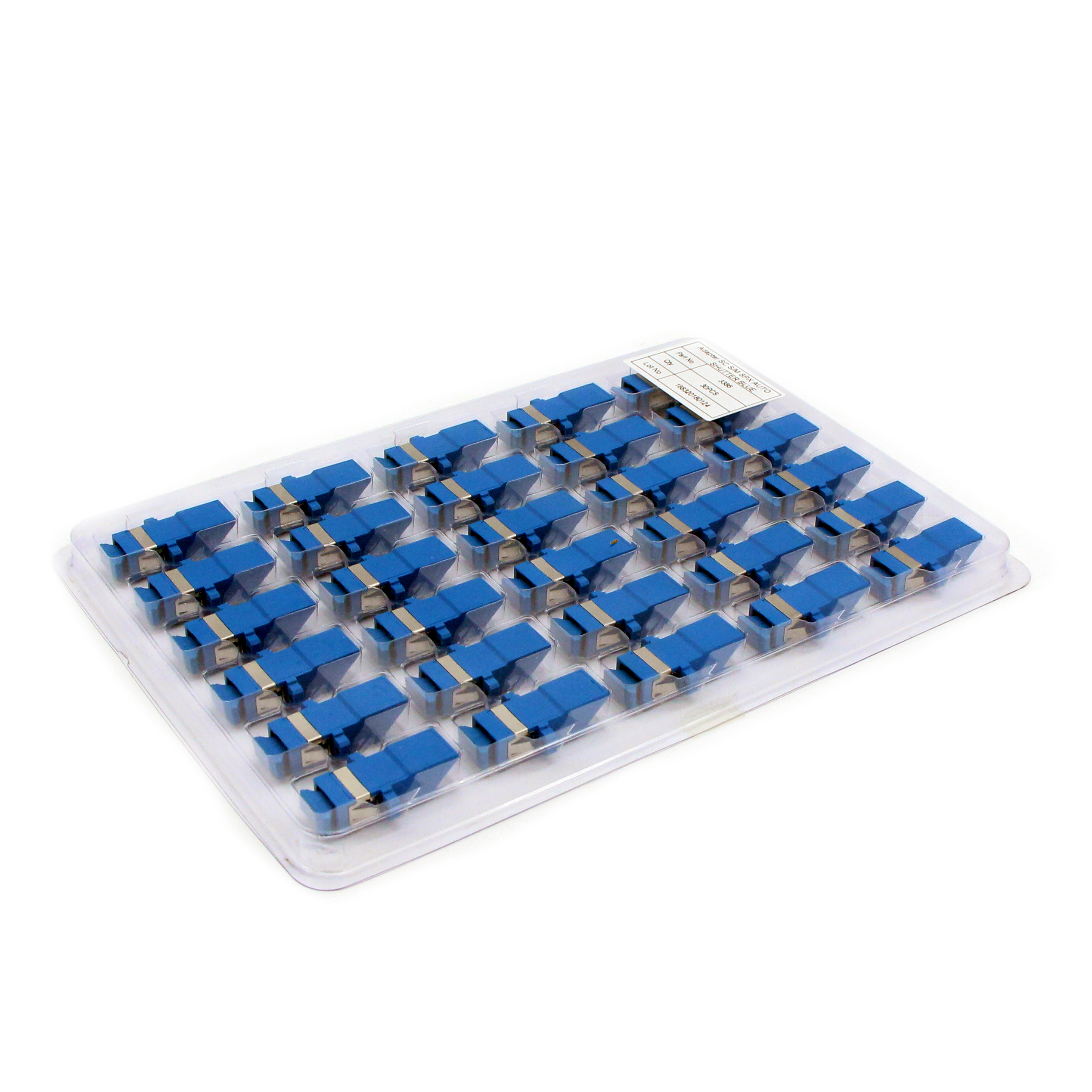

Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
