SC FC ST LSH LC Optical Attenuator Female To Female Singlemode 10dB
Customized LC / SC / FC / ST / LSH Singlemode Reduced Flange Fiber
Optic Attenuator, Female to Female, 1~20dB
Female to female Fixed attenuators from OMC offer defined control
of optical signals in both integrated and add-on products.
Depending on the project or need, fixed attenuators can limit
(attenuate) the amount of light passing through to the exact levels
your project or application requirement. These precise attenuation
levels provide for highly accurate performance.
Specification
| Fiber Connector | LC | Sleeve Type | Zirconia Ceramic |
| Connector Gender | Fixed Female to Female | Transfer Mode | Single mode |
| Attenuation | 1~25dB | Operating Wavelength(nm) | 1260~1620(SM) |
| Attenuation Accuracy | 1-9dB ±0.5, 10-25dB ±10% | Return Loss | ≥55dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temp Range | -40~80°C |

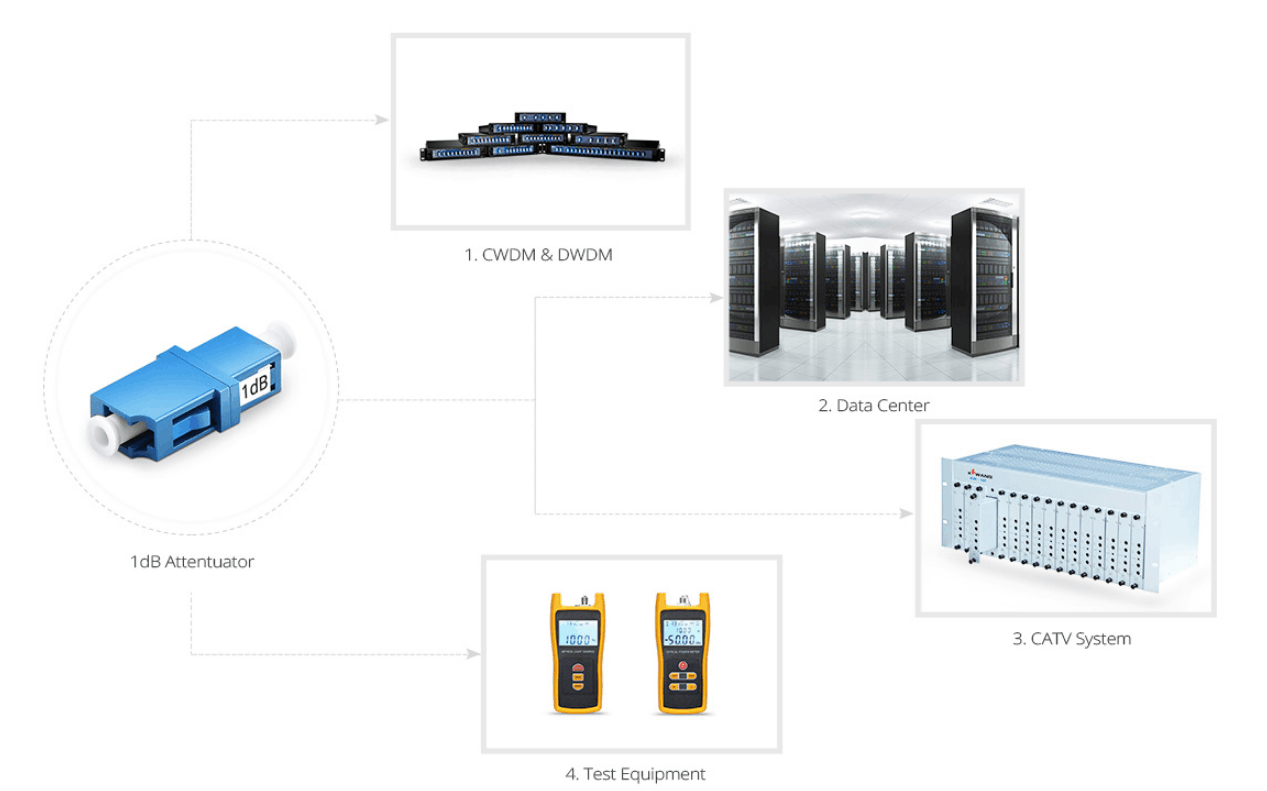

Applications
Optical attenuator is a passive device used to reduce the power
level of an optical signal. It is generally used in single-mode
long-haul applications to prevent optical overload at the receiver.
Optical attenuator is widely used in CWDM&DWDM, CATV systems,
data center networks, test equipment and other high-power
applications
DWDM applications
Test & measurement
Optical sensors
Telecommunications applications
Fast connection
Distinctive female-female port, easily to connect patch cables and
other equipments.
FAQ
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
