Optical Fiber Attenuator Precision Polishing Inline Fully
Compatible With SC APC Connect 2.0mm Blue Cable
Optical attenuator is a passive device used to reduce the power
level of an optical signal. It is generally used in single-mode
long-haul applications to prevent optical overload at the receiver.
Optical attenuator is widely used in CWDM&DWDM, CATV systems,
data center networks, test equipment and other high power
applications.
CVOA comprises a dual fiber collimator and a reflection component
separated by a linear moveable ND filter. They are used to permit
dynamic control of optical power levels in a fiber and can be
applied to adjust power level of signal in the optical
communication at the output of light sources, E/O converters and
for the linear or dynamic range of power meter.
Collimator variable optical attenuator is an useful tool for the
optical components and systems test.
Specification
| Parameter | 1310nm | 1550nm | 1310/1550 Dual window | 850nm/1310nm |
| Wavelength (nm) | 1310 ± 40 | 1550 ± 40 | 1310 ± 40 & 1550 ± 40 | 850 ± 40 &1310 ± 40 |
| Attenuation range (dB) | 0.6 ~ 60 | 0.6 ~ 60 | 0.8 ~ 60 | 0.8 ~ 40 |
| Original loss (dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤0.8 |
| Adjustment Precision (dB) | 0.02 |
| Return loss (dB) | ≥50 | ≥25 |
| Fiber Type | SMF-28e | 50/125 or 62.5/125 |
| PDL (dB) | ≤0.15 |
| Operating& Storage temperature (℃) | -40 ~ +85 |
| Cable Length | 1M-2M |
Features
1.Wide attenuation range 0dB to 60dB
2.High Stability &High Reliability
3.Low original loss&PDL
4.Compact size
Application
Variable in-line optical attenuators comprises a dual fiber
collimator and a reflection component separated by a linear
moveable ND filter. They are used to permit dynamic control of
optical power levels in a fiber and can be applied to adjust power
level of signal in the optical communication at the output of light
sources, E/O converters and for the linear or dynamic range of
power meter.

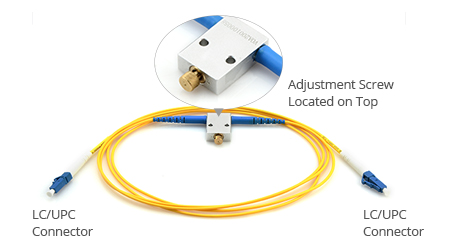

Detailed Picture
Operation of Variable Optical Attenuator
Features and Applications of OMC's In-Line VOA
| High precise attenuation value | Wide attenuation range 0dB to 30dB |
| Low insertion loss and PDL | High return Loss |
| Perfect environmental stability and reliability | Easy installation |
| Well package | RoHS compliant |

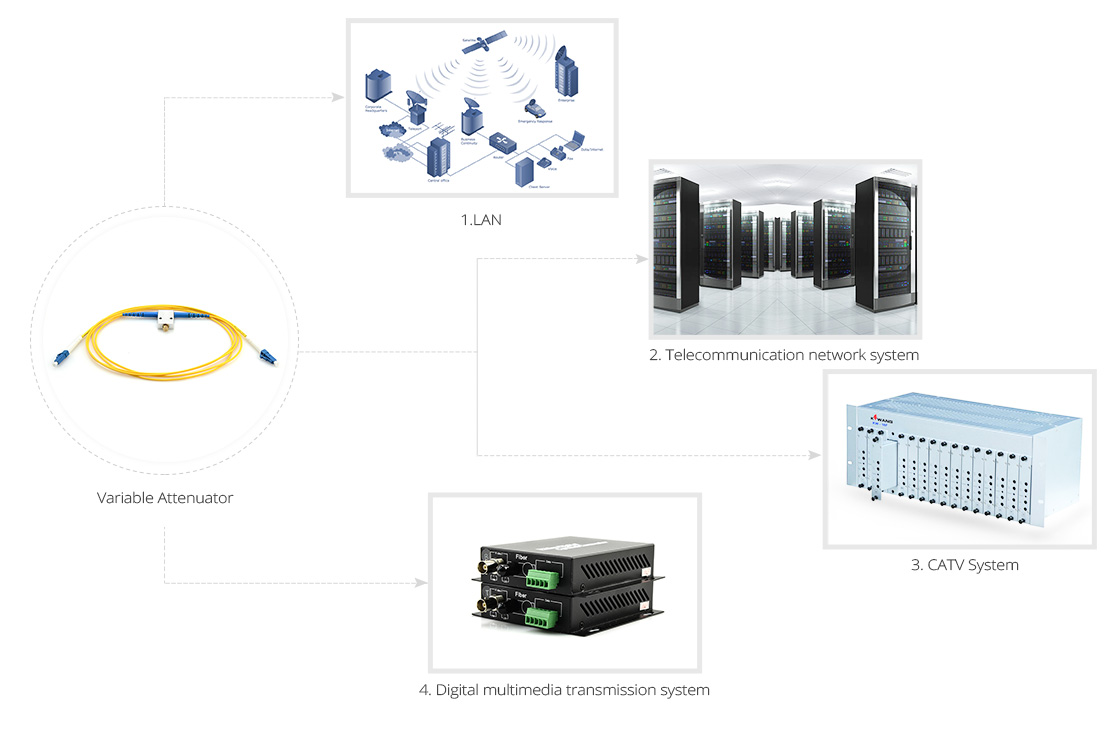

With above excellent characteristics, variable fiber optic in-line
attenuators can be used in fiber optical telecommunication system
and optical transmission system. These attenuators can be applied
in FTTH, CATV, LAN, fiber optical sensor and subscriber loop. They
are often used as the testing equipment.
