Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC
Female
Fiber optic adapter SC male to FC female simplex coupler SC FC
fiber optical adapter
FC Female to SC male conversion adapter adopt embedded optical
fiber connector and optical fiber ferrule matching Sleeve joint
technology. The products can hybrid a type of fiber optic
connectors (male) into another type of optical fiber connector
(male). It keeps the advantages of small size, light signal stable,
easy to use characteristics, widely used in optical fiber equipment
instrument testing and rescue project construction field.

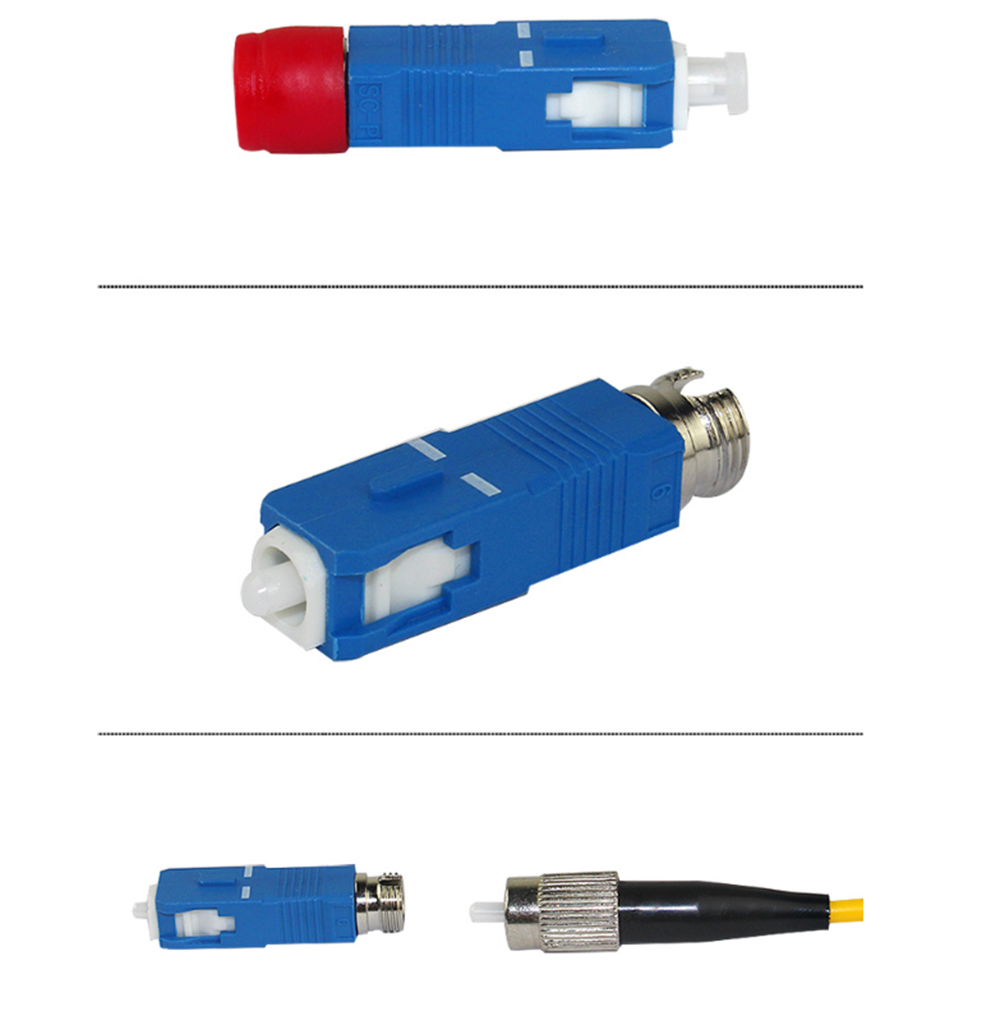

This FC(Female) to SC(Male) fiber optic conversion adapter,
Converting FC connector to SC Connector. Variable FC interface
conversion SC interface. Provided a simple and reliable solution
for connecting two different optic fiber transmission joints.
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3
requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.2dB Max. |
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) |
| Storage Temp(℃) | -40~+85
|
Material
| Parts name | Material | Color |
| Housing body | PBT | Green |
| Sleeve | High precision Ceramic sleeve | Sleeve |
| Inside hook | PBT/PPS | Green |
| Dust Cover | PBT | Green
|
Application
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2
50/125
