1U MTP / MPO - LC Angled patch panel, 96F 8x MTP/MPO-12 to LC, 128F
16x MTP/MPO-8 to LC,144F 12x MTP/MPO-12 to LC/UPC
1U MTP/MPO Angled patch panel offers an expandable deployment, for
implementations in 40G/100G networks, in the meantime, providing
greater protection to the installed patch cords in main, horizontal
and equipment area of data center, telecommunication, LAN network
and FTTH etc.
OMC can offer below angled patch panel.
Available for:
96 Fibers 8x MTP/MPO-12 to LC/UPC OM4 1U 10/40/100GB Breakout
Angled Patch Panel
128 Fibers 16x MTP/MPO-8 to LC/UPC Singlemode 1U 10/40/100GB
Breakout Angled Patch Panel
144 Fibers 12x MTP/MPO-12 to LC/UPC Singlemode 1U 10/40/100GB
Breakout Angled Patch Panel
Specification:
| Total Fiber Count | 96 Fibers 128Fiber 144Fibers | Fiber Type | OS2 9/125µm SMF OM3 50/125µm MMF OM4 50/125µm MMF |
| Front Adapter Type | LC UPC Duplex | Rear Adapter Type | MTP (keyup-keydown) |
| Front Interfaces | 48 64 72 | Rear Interfaces | 8 16 12 |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Return Loss | MTP≥20dB, LC≥30dB |
| MTP Adapter | Key up to key down | Cable Polarity | Polarity A |
| Cassette Type | 1RU 19' Angled | Dimensions | 44.3mmx 483mmx 220.2mm |
Tips
• Angled MTP/MPO-LC Fiber Patch panel can help you to save the cost
of horizontal fiber accessories and reduce the bend on the patch
cables in cabling system.
• Attached sticker describes the key parameters of the cassette,
which improves deployment flexibility for your cable system.
1U 96-144 Fibers Angled Patch Panel
With angled front to small depth for compact design
Equipped with MTP-LC Elite cables for high speed in network
infrastructure
Ready-to-install panel optimizes performance and ensures network
uptime

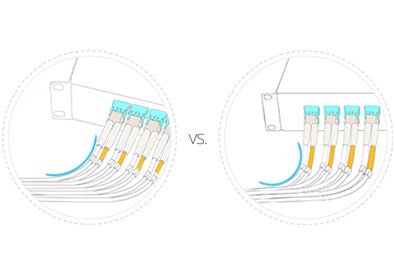

Slanted Design to Directly Routing
For angled patch panel, it enables faster installation to vertical
cable managers and eliminates the need for horizontal cable
management
Highlights:
Internal angled cable managers design facilitates proper bend
radius to easier get at the cables and simplifies termination
