Air Blown Micro 144 Core Optical Fiber Cable For FTTH FTTB FTTX
China Fiber Optic Cable Manufacturers Air-Blown Micro 24-144 core
Optical Fiber Cable GCYFTY
OMC has been devoted to developing and producing the air blown
fibre cable since 2003. So far, it has produced various air blown
fibre cable types which are of good performance and compose a
complete series of air blown products. ABF is the important part of
the series, and it is the most popular product of the indoor
optical fibre cables for generic cabling in Europe,Japan ,South
Korea and so on.
The ABF is the product that with small diameter, lightweight,
highly flexibility and proper stiffness, and it can be blown into
the microduct of 5.0/3.5mm. The fibres are coated with a soft
acrylate resin which provides excellent dimensional and thermal
stability to cushion the fibres, in addition, the resin can be
easily stripped in connecting the fibres. The outer sheath is a
thermoplastic that is of low friction. The surface of the sheath is
designed with special grooves, compared to the surface of the
traditional optical fibre cable, it provides not only the high
level of mechanical protection, but also the perfect blowing
performance.
Features and Benefits
Stable structure, good mechanical and temperature performance.
Designed with special grooves to advance blowing distance.
Lightweight and proper stiffness , repeat installation.
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
Standards
Unless otherwise specified in this specification, all requirements
shall be mainly in accordance with the following standard
specifications.
Optical Fibre …...ITU-T G.651,G.652,G.657
Optica Cable ……IEC 60794-1-2,IEC 60794-5
Air Blow Cable Design
Loose Tube Optical Fiber Cable-Mini Design-G.652D Fiber
Central Strength Member (CSM): glass fiber reinforced plastic rod
(FRP) with PE sheath covering when needed.
Buffer Tube: PBT plastic material, containing 12 fibers and filled
with a suitable water tightness compound.
Filler Elements: Nature PP plastic rods, when needed.
Stranding: Loose tubes and fillers SZ stranded around the CSM.
Longitudinal Water Tightness: dry core with water swellable
elements.
Ripcord: 1 aramid ripcord under outer sheath.
Outer Sheath: Black HDPE
Cable Specification
| Cable Cores | | 24 | 36 | 72 | 96 | 144 |
| No. of Tubes | | 2 | 4 | 6 | 8 | 12 |
| No. of Fillers | | 4 | 2 | / | / | / |
| Fiber Counts in Tube | | 12 |
| Tube/Filler-Φ | mm | 1.6 | 1.4 |
| CSM-Φ | mm | 1.7 | 2.1 | 2.4 |
| CSM with PE-Φ | mm | / | 2.65 | 4.2 |
| Thickness of Outer PE Sheath | mm | 0.5 |
| Max. Cable Diameter | mm | 6.0 | 6.9 | 8.0 |
| Nominal Cable Weight | Kg/km | 30 | 42 | 57 |
Main Mechanical and Environmental Characteristics
| Test | Test Standard | Specified Value | Acceptance Criteria |
| Tensile | IEC 60794-1-2-E1 | 500N, 10min | fiber strain≤0.60%,△α reversible |
Crush | IEC 60794-1-2-E3 | 500N/10cm, 10min, 3time | α reversible, no damage |
| Impact | IEC 60794-1-2-E4 | 2J, R=300mm, 3impacts | α reversible, no damage |
| Bend | IEC 60794-1-2-E11 | R=10D, 3turns, 5cycles | α reversible, no damage |
| Torsion | IEC 60794-1-2-E7 | 40N, 5cycles, +/-180° | α reversible, no damage |
| Temperature Cycling | IEC 60794-1-2-F1 | -20~+70℃, 2 cycles, 8h | α reversible, no damage |
| Water Penetration | IEC 60794-1-2-F5 | 3m sample, 1m height, 24h | No water leakage |
Fiber & Tube Color

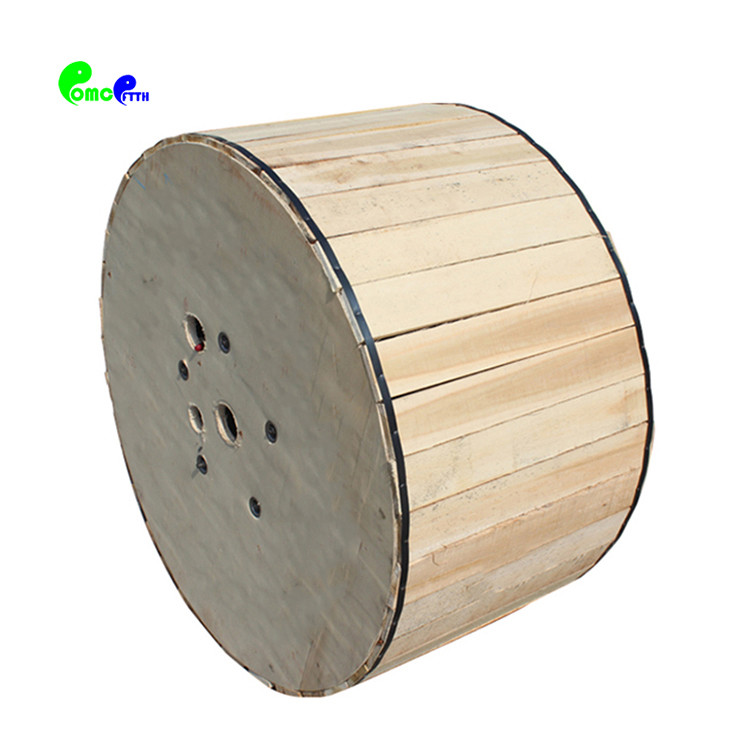

Package
