144 Cores ADSS Fiber Optic Cable G652D G657A1 G657A2 G657B3 OM1 OM2
HDPE
4 - 144 cores ADSS cable Span 100-1200m with G652D , G657A1 ,
G657A2 , G657B3 , OM1 , OM2 , OM3 ,OM4 HDPE outdoor cable
The ADSS structure of the optical cables adopts loose tube twisted
structure. 250 um optical fibers are inserted into loose tube made
of high modulus polyester and filled with non-metallic reinforcing
members (FRP) around the center of the cable to form a round core.
The gap in the core is filled with water-blocking ointment, Two
layers of aramid yarn are twisted to reinforce the yarn. The gap in
the core is filled with water-blocking ointment, and the inner
sheath of polyethylene (PE) outside the core is then two-way. Two
layers of aramid yarn are twisted to reinforce the yarn. Finally,
polyethylene (PE) sheath or AT sheath are extruded.
All Dielectric Self-Supporting Cable-Single Sheath (4-144F) is a
non-metallic cable which supports its own weight without the use of
lashing wires or messenger cables, typically installed in overhead
applications along power distribu- tion or transmission
The span length of the cable ranges from 100m to 1500m
Standard color of fiber and tube
The color code of the tubes and the individual fibers, shall be in
accordance with the table as below:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Specification:
All Dielectric Self-Supporting Cable-Single Sheath (4-144F)
| Fibers count | 4-144Fibers |
| No. of Tube | 1~12 |
| No. of fiber/Tube | 4-12 Fibers |
| Loose Tube Diameter | 2.0 mm-2.2mm |
| FRP Strength Member Diameter | 1.5mm-2.2mm |
| Aramid Yarn Section | 2.0mm² |
| Out Sheath Diameter Thickness | 1.8mm-2.0mm |
| Cable Diameter( mm) | See below |
| Cable Weight | See below |
| Loose Tube Material | PBT |
| Filling compound (Tube) | Thixotropic Jelly |
| Water Blocking | Water Swellable Material |
| Out sheath | HDPE |
Technical Parameters (4-144Cores)
Fiber Count |
Fiber count | Loose- tubes |
Filler | Cable OD (mm) | Weight kg/km | Span (M) | MAT (KN) |
RTS(KN) | Bending radius Static/dynamic (mm) |
| ADSS-4~6 | 4~12 | 1 | 4 | 9 | 75 | 50 | 1 | 2 | 10D/20D |
| ADSS-16~24 | 14~24 | 4 | 1 | 9.5 | 80 | 100 | 2 | 4 | 10D/20D |
| ADSS-26~36 | 26~36 | 3 | 2 | 9.5 | 80 | 150 | 3 | 6 | 10D/20D |
| ADSS-38~48 | 38~48 | 4 | 1 | 9.5 | 80 | 200 | 4 | 8 | 10D/20D |
| ADSS-50~60 | 50~60 | 5 | 0 | 9.8 | 85 | 250 | 5 | 10 | 10D/20D |
| ADSS-62~72 | 62~72 | 6 | 0 | 10.5 | 90 | 300 | 6 | 12 | 10D/20D |
| ADSS-74~84 | 74~84 | 7 | 0 | 11 | 95 | 350 | 7 | 14 | 10D/20D |
| ADSS-86~96 | 86~96 | 8 | 0 | 11.5 | 100 | 400 | 8 | 16 | 10D/20D |
| ADSS-98~108 | 98~108 | 9 | 0 | 12 | 105 | 450 | 9 | 18 | 10D/20D |
| ADSS-110~122 | 110~120 | 10 | 0 | 12.5 | 110 | 500 | 10 | 20 | 10D/20D |
| ADSS-124~132 | 122~132 | 11 | 0 | 13 | 115 | 550 | 12 | 24 | 10D/20D |
| ADSS-124-144 | 124~144 | 12 | 0 | 13.5 | 120 | 600 | 13 | 26 | 10D/20D |
All Dielectric Self-Supporting Cable-Double Sheath(4-144F)
| Fibers count | 4-144Fibers |
| No. of Tube | 1~12 |
| No. of fiber/Tube | 4-12 Fibers |
| Loose Tube Diameter | PBT:2.0 mm |
| FRP Strength Member Diameter | 2.0mm |
| Inner Sheath Thickness | 1.0mm |
| Aramid Yarn Section | 2.0mm² |
| Out Sheath Diameter Thickness | 1.7mm |
| Cable Diameter( mm) | See below |
| Cable Weight | See below |
| Loose Tube Material | PBT |
| Filling compound (Tube) | Thixotropic Jelly |
| Water Blocking | Water Swellable Material |
| Out sheath | HDPE |
Technical Parameters (4-144Cores)
| Items | Cable diameter | Net Weight |
| 2cores to 48cores | 12±0.5mm | 140kg/km |
| 96 cores | 13.5±0.5mm | 170kg/km |
| 144 cores | 16.0±0.5mm | 245kg/km |
| Installation Temperature range | -15--+60 |
| Operation and transport temperature | -40-+70 |
Features and Advantages
The cable diameter is small, the weight is light, the span can
reach 1500M, and the additional load to the tower is low. High
tensile strength, over 90KN
Non-metallic structure, good insulation, lightning protection
The aramid yarn has excellent production technology, uniform force,
excellent stress-strain performance, excellent gun- shot resistance
and best anti-electric corrosion performance
No blackout construction, power line failure does not affect the
normal transmission of optical cable
Smooth shape, so that the cable has superior aerodynamic
performance
 | ITU recommendation G.657 specifies two classes of single-mode bend
insensitive fiber patch cables: G.657 A and G.657 B. Each category
(A and B) is then divided into two sub-categories: G.657.A1,
G.657.A2 and G.657.B1, G.657.B2. The minimum bend radius of
G.657.A1 fibers is 10 mm, of the G.657.A2 and G.657.B1 fibers is
7.5 mm and of the G.657.B2 fibers is 5 mm. Among, ITU-T G.657.A1
and ITU-T G.657.A2
fibers are fully compliant with ITU-T G.652.D fibers. |

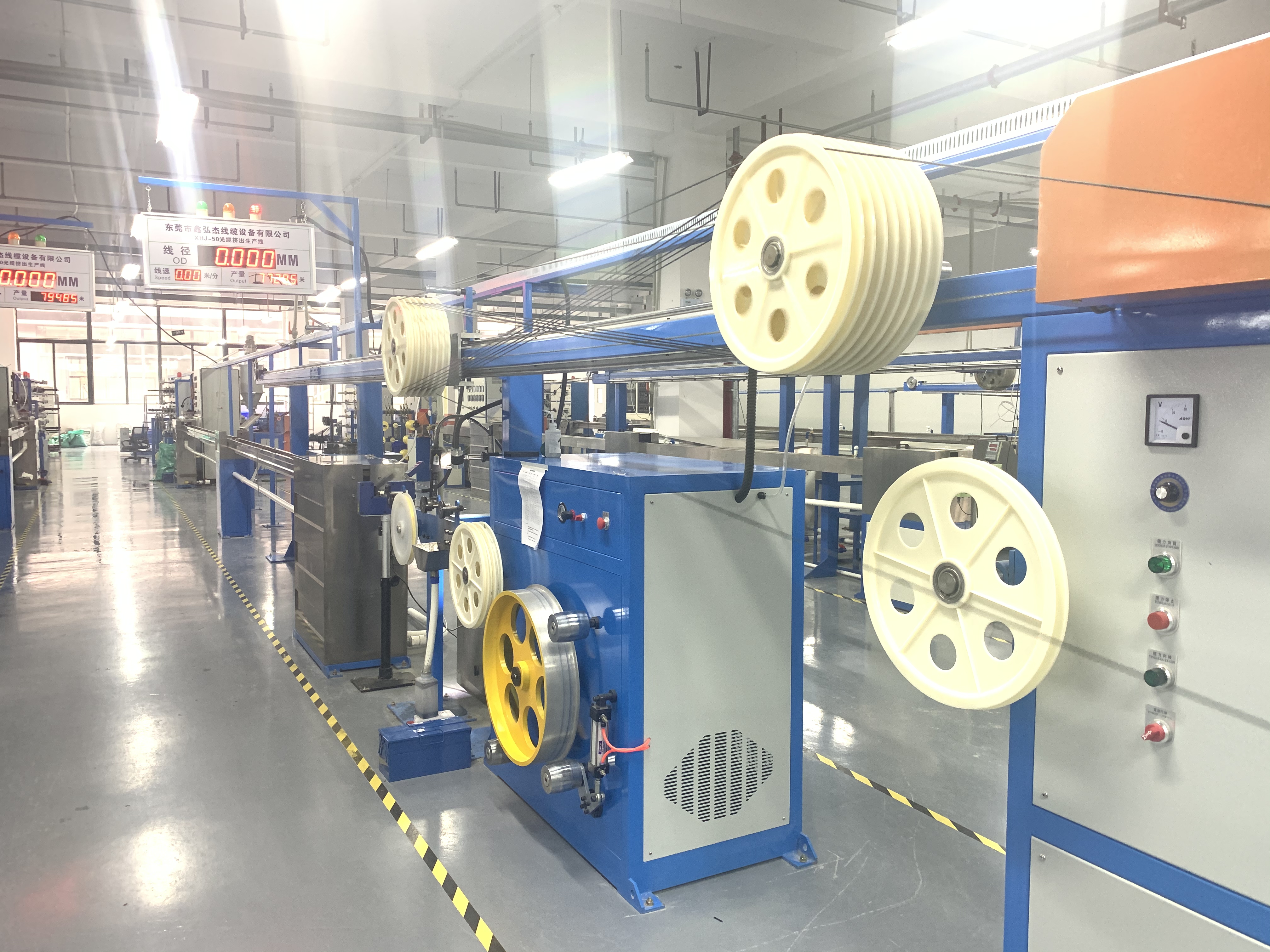

OMC's Fiber optic cable workshop.
