SM 12F Fanout 2.0mm MPO Trunk Cable MPO Male - LC UPC Harness Cable With LSZH Blue Cable Super Low Loss

12 cores MPO to 12 LC Simplex Straight harness Cables assemblies.

MPO- LC/SC/FC/ST Straight harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The 12pcs(12 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

12F MPO- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity
data center. It is optimized for 10/40/100G high-density data center applications.

MPO products’ Standard:

- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

MPO-LC/UPC 12F patch cord’s Specification:

AVAILABILITY:

- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available

Features:

- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability

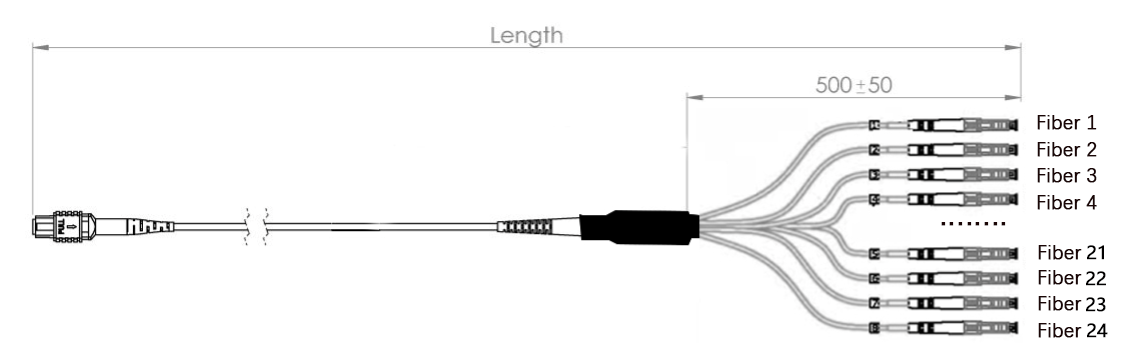

Length Tolerance

High Quality MPO Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.
